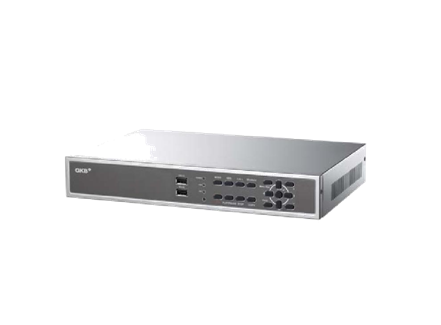

GKB R1607 Digital Video Recorder

16-Channel D1 H.264 Digital Video Recorder with POS

GKB R1607 is a standalone digital video recorder (DVR) for use in residential and retail surveillance installations. Live stream video provides high quality real time images. The DVR supports up to 2TB/HDD, for extended recording time. POS support makes this DVR ideal for retail and hospitality applications.

Categories: ,

Description

Features:

• H.264 Video Compression

GKB R1607 features advanced H.264 video compression for superior video resolution. The high compression ratio of H.264 consumes less HDD space than MPEG-4 video.

• 3D De-interlace

Live stream video is enhanced by the 3D De-interlace function, providing high quality images.

• 3G/GPRS Mobile Phone Surveillance

GKB R1607 provides remote surveillance with 3G/GPRS mobile phone or PDA phone, without additional software.

Alternate Views

• Full D1 Resolution

GKB R1607 provides full D1 resolution for record or playback. This provides the user with a wide choice of image quality. Real time live display also available for all cameras.

• Hyper Interactive E-Map

GKB R1607 features a Hyper E-Map function, allowing users to customize E-Map and E-Map objects to fulfill customized needs. It provides multi-task managerial functions through unlimited E-Map layers.

• Smart Detection Zone Search

GKB R1607 allows users to specify a certain region of the camera video. If any event that is recorded is found with motion in this region, the event will be listed. This helps locate events of interest very efficiently.

GKB R1607 Digital Video Recorder

















System

Embedded Linux













Mode

Multiplex – Live, Record, Network, Backup,

Remote



access, Control, Play back









System

Video Channel

16





Video Output

BNC x 1,VGA x 1













Audio

2 RCA Input / 1 RCA Output















Alarm Input

8 Input







Alarm Output

1 Output







Compression

H.264







Display Resolution

NTSC:720×480

PAL:720×576





Record

NTSC:120fps/D1, 240fps/Half D1, 480fps/CIF





PAL: 100fps/D1, 200fps/Half D1, 400fps/CIF









Video

Recording Mode

continual Schedule/Motion/Alarm



Display Division

1,4,7,9,10,13,16 Sequential









Playback Mode

Smart Search,

Date/time, Camera ,Alarm,

Motion,



Video Loss















Playback Operation

Play, Fast Forward, Backward, Pause, Stop, Slow



Digital Zoom

2x ,4x







Software

CMS, IE Browser







Network Interface

1 RJ-45 10/100Mbps



Network

Protocol

TCP/IP, HTTP, PPPoE, DHCP, DDNS, FTP,TSP



Audio

2 Way













Remote User

6 Max







Management

10 DVRs







Operation Interface

Mouse / Key Pad / Remote Controller (included)







Control/ Management

PTZ / e-MAP/ GPS system / POS

Yes ( POS needs RS-485 to RS-232 converter, not

included)















RS-485 / RS-232

Yes













Storage/Backup

Internal Storage

3.5” SATA HDD x 1 ,2TB Max





HDD Extension

1 e-SATA







USB

1 USB port support DVD+RW, DVD+R, DVD-R, Card



readers, HDD.1 USB port for mouse









Dimension / Weight

320(W) x 210(D) x 50 (H)mm / 2.0 KG(without HDD)















Power

Power Supply

DC 12V













Power Consumption

30W Max





















Temperature

0oC ~ +45oC (Operation)
