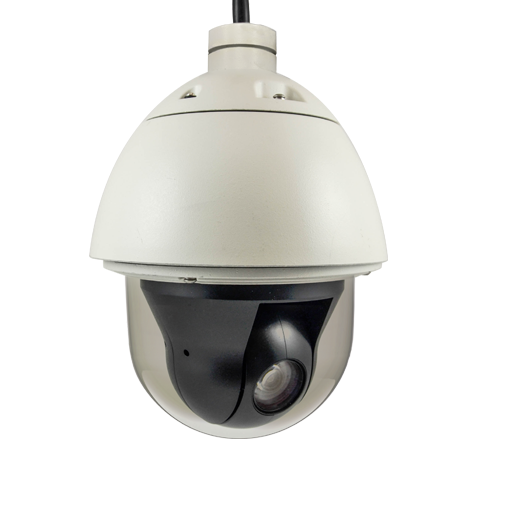

I94

Description

• Device
Product Type Outdoor PTZ Camera
Image Sensor Progressive Scan CMOS
Sensor Size 1/2.8”
Day / Night Yes
Superior Low Light Sensitivity Yes
Minimum Illumination Color: 0.1 lux at F1.6 (30 IRE, 2400°K); B/W: 0.05 lux at F1.6 (30 IRE, 2400°K)
Color to B/W Switch ISP based switch, configurable
Mechanical IR Cut Filter Yes
IR Sensitivity Range 700 – 1100nm
IR LED No
Electronic Shutter 1/5 – 1/2,000 sec (manual mode); 1/5 – 1/10,000 sec (auto mode)
• Lens
Focal Length Zoom, f4.3 – 129 mm / F1.6 – 5.0
Zoom Ratio 30x optical; 16x digital
Zoom Speed 2.87 sec (1x to 30x)
Iris DC iris
Focus Auto focus
Horizontal Viewing Angle 66.4° – 2.61°
• PTZ
Manual Panning Speed 0.5° – 90°/s
Manual Tilting Speed 0.5° – 90°/s
Preset Panning Speed 0.5° – 450°/s
Preset Tilting Speed 0.5° – 450°/s
Panning Range 0° ~ 360° (with Auto-flip)
Tilting Range -20° ~ 200°
Control Remote manual control; 256 preset points; 10 preset tours; Auto scan
Preset Panning Accuracy 0.265°
Preset Tilting Accuracy 0.265°
Absolute Positon Yes
Protocol ACTi URL command, Sony VISCA, Pelco D, Pelco P
• Video
Compression H.264, MJPEG
Max. Frame Rate vs. Resolution 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
Multi-Streaming Simultaneous dual streams based on two configurations
Bit Rate 28 Kbps – 6 Mbps (per stream)
Bit Rate Mode Constant, Variable
Image Enhancement
Extreme WDR (145 dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness;
Automatic gain control; 2D+3D Digital Noise Reduction; Flickerless; Defogging; Digital image stablilizer
Privacy Mask 4 configurable regions
Text Overlay User defined text on video
Image Orientation Image flip, mirror, rotation
• Audio
Audio 2-way
Compression 8 kHz, Mono, PCM, 16 bit encoding; G.711
Audio-In Cable without connector
Audio-Out Cable without connector
• Network
Protocol & Service TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP,
SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco D, Pelco P
Ethernet Port 1, Ethernet (10/100Base-T), RJ-45 connector
Security IP address filtering; HTTPS encryption; Password protected user level; Anonymous login; IEEE 802.1X network access control
• Alarm
Alarm Trigger Video motion detection (3 regions); External device through digital input
Alarm Response Notify control center; Go to PTZ preset point or preset tour; Change camera settings; Command other devices; E-mail notification with snapshots;
Save video or snapshot to local storage; Upload video, Snapshot to FTP server; Activate external device through digital output
• Interface
Digital Input 4, cable without connector
Digital Output 2, cable without connector
Local Storage MicroSDHC/MicroSDXC memory card slot (card not included)
• General
Power Source / Consumption High PoE (IEEE802.3at) / 25.44 W (built-in heater and fan on)
AC 24V / 31.5 W (built-in heater and fan on)
Weight 2500 g ( 5.51 lb)
Dimensions (Φ x H) 200 x 276 mm ( 7.9” x 10.9”)
Environmental Casing Weatherproof (IP67); Vandal proof casing (IK10); Bundled dome cover (IK09), Optional dome cover (IK10)
Mount Type Pendant, Wall, Corner, Pole, Parapet
Starting Temperature -40°C ~ 50°C (-40°F ~ 122°F ) within 30mins
Operating Temperature -40°C ~ 50°C (-40°F ~ 122°F )
Operating Humidity 10% ~ 85% RH
Approvals CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B) IP67, IK09, NEMA 4X
• Integration
Unified Solution Fully compatible with ACTi software
ISV Integration Software Development Kit (SDK) available; ONVIF Compliant
Firmware Access Browser Microsoft Internet Explorer 8.0 or newer (full functionality)
Safari with QuickTime installed, and other browsers with VLC installed (partial functionality)
