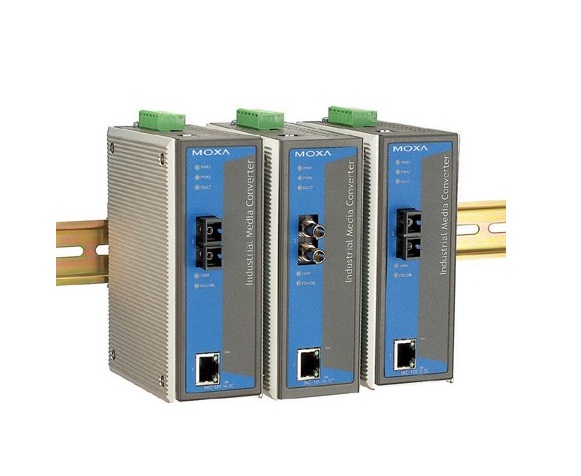

IMC-101-S-SC-T, Ind. 10/100BaseT(X) to 100BaseFX media converter



Industrial 10/100BaseT(X) to 100BaseFX media converter, single mode, SC connector, 40 km, -40 to 75°C operating temperature



10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
Link Fault Pass-Through (LFP)
Power failure, port break alarm by relay output
Redundant power inputs
40 to 75°C operating temperature range (T models)
Designed for hazardous locations (Class 1 Div. 2/Zone 2)

Description

IMC-101 industrial media converters provide industrial grade media conversion between 10/100BaseT(X) and 100BaseFX. IMC-101’s reliable industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101 converter comes with a relay output warning alarm to help prevent damage and loss. IMC-101 media converters are designed for harsh industrial environments, such as in hazardous locations (Class 1 Division 2/Zone 2, DNV, and GL Certification), and comply with FCC, TÜV, UL, and CE standards. The IMC-101 series is available in models that support an operating temperature of 0 to 60˚C, and an extended operating temperature of -40 to 75˚C. All IMC-101 series are subjected to a 100% burn-in test.

High Performance Network Switching Technology
10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X supported
Multi mode, single mode with SC or ST connector available

Industrial-grade Reliability
Link Fault Pass-Through (LFP)
Power failure, port break alarm by relay output
Redundant power inputs

Industrial Rugged Design
Regular (0 to 60°C) and extended (-40 to 75°C) operating

temperature models available
DIN-Rail or panel mounting ability
Long-haul transmit distance of 40 km or 80 km
Designed for hazardous locations (Class 1 Div. 2/Zone 2)

Recommended Accessories
DR series DIN-Rail 24 VDC power supplies
