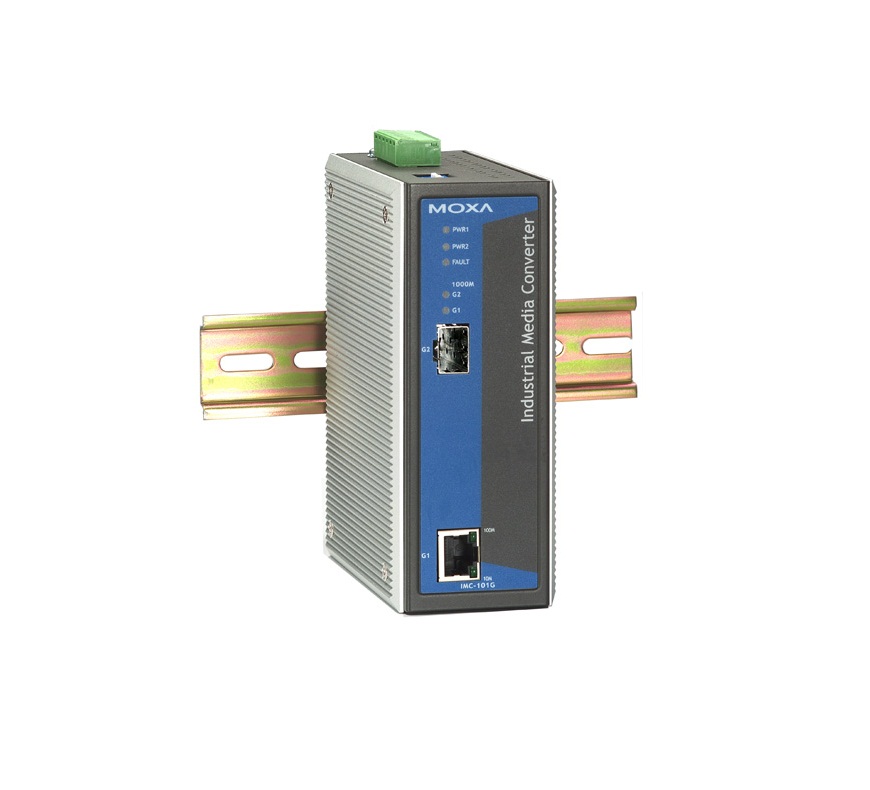

IMC-101G Industrial 10/100/1000BaseT(X) to 1000BaseSX/LX/LHX/ZX

Industrial 10/100/1000BaseT(X) to 1000BaseSX/LX/LHX/ZX media converter, 0 to 60°C operating temperature

Highlights

  • 10/100/1000BaseT(X) and 1000BaseSX/LX/LHX/ZX supported
  • Link Fault Pass-Through (LFP)
  • Power failure, port break alarm by relay output
  • Redundant power input
  • -40 to 75°C operating temperature range (T models)
  • Designed for hazardous locations

Description

Includes

  • 1 x IMC-101G Series unit
  • 1 x installation guide
  • 1 x warranty statement

RJ45 Ports
10/100/1000BaseT(X)

Fiber Ports
Optional 1000BaseSX/LX/LHX/ZX (LC connector) with SFP modules (sold separately)

LED Indicators
PWR1, PWR2, FAULT, 10/100M (TP port), 1000M (TP and Fiber port)

DIP Switches
Port break alarm mask, Fault Pass-Through, Fiber AN/Force

Alarm Contact
One relay output with current carrying capacity of 1A @ 24 VDC

Operating Temperature
Standard Models 0 to 60°C (32 to 140°F)
Wide Temp. Models -40 to 75°C (-40 to 167°F)

Input Voltage
24 VDC (12 to 45 VDC), redundant inputs

Input Current
0.11A (@ 24 V)

OVERVIEW

The IMC-101G industrial Gigabit media converters are designed to provide reliable and stable 10/100/1000BaseT(X) to 1000BaseSX/LX/LHX/ZX media conversion in harsh industrial environments.

The IMC-101G’s industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101G converter comes with a relay output warning alarm to help prevent damage and loss.

All IMC-101G models are subjected to a 100% burn-in test, and are available in models that support a standard operating temperature range of 0 to 60°C, and an extended operating temperature range of -40 to 75°C.
