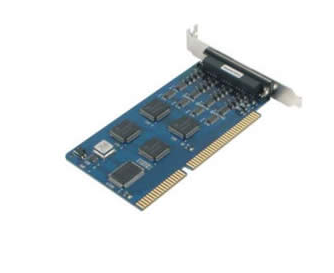

C104H-DB9M 4-port RS-232 ISA serial board (includes DB9 male cable)

Highlights

  • Economical, compact ISA boards with 4 RS-232 ports
  • 921.6 Kbps maximum baudrate for super fast data transmission
  • 16-byte FIFO and on-chip H/W, S/W flow control
  • Drivers provided for Windows (2000/XP/2003/Vista/2008, 9X/ME/NT, 3.x), Windows XP Embedded, DOS, Linux 2.4, Linux 2.6 (x86/x64), QNX 4/6, FreeBSD 4/5, SCO OpenServer 5/6, UnixWare 7
  • Easy configuration without switches or jumpers

Description

Includes

  • 1 x C104H/HS unit
  • 1 x support CD/DVD
  • 1 x installation guide
  • 1 x warranty statement
  • 1 x DB9 male or DB25 male connection cable

Specs:

Comm. Controller
16C550C or compatible x 4

Bus
16-bit ISA

Connector
DB37 female

Number of Ports
Number of Ports 4

Serial Standards
Serial Standards RS-232

ESD Protection
25 KV on the board (C104HS only)

Operating Systems
Windows (2000/XP/2003/Vista/2008, 9X/ME/NT, 3.x), Windows XP Embedded, DOS, Linux 2.4, Linux 2.6 (x86/x64), QNX 4/6, FreeBSD 4/5, SCO OpenServer 5/6, UnixWare 7

Dimensions
83 x 157 mm (3.27 x 6.18 in)

Operating Temperature
0 to 55°C (32 to 131°F)

Overview:

The 4-port C104H/HS ISA boards offer users an economical, high performance multiport serial communication solution for connecting terminals, modems, printers, data acquisition equipment, and other serial devices to a PC.

The boards are a top choice of industrial automation engineers and system integrators, and support many different operating systems, including Windows, Linux, and even Unix. In addition, each of the boards’ 4 RS-232 ports supports a super fast 921.6 Kbps baudrate.
