CP-114EL-DB25M 4-port RS-232/422/485 low profile PCI Express

CP-114EL-DB25M 4-port RS-232/422/485 low profile PCI Express x1 serial board (includes DB25 male cable)

Highlights

  • PCI Express x1 compliant
  • 921.6 Kbps maximum baudrate for super fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Low profile form factor fits small-sized PCs
  • Drivers provided for Windows (2000, XP/2003/Vista/2008 x86/x64),Linux 2.4, Linux 2.6 (x86/x64), QNX 6, Windows XP Embedded, SCO OpenServer 5/6, UnixWare 7
  • 15 KV ESD protection on the board
Categories: , ,

Description

Includes

  • 1 x CP-114EL/EL-I unit
  • 1 x support CD/DVD
  • 1 x installation guide
  • 1 x warranty statement

Specs:

Comm. Controller
16C550C compatible

Bus
PCI Express x1

Connector
DB44 female

Number of Ports
4

Serial Standards
RS-232/422/485

ESD Protection
15 KV on the board

Optical Isolation
2 KV (CP-114EL-I only)

Operating Systems
Windows (2000, XP/2003/Vista/2008 x86/x64), Linux 2.4, Linux 2.6 (x86/x64), QNX 6, Windows XP Embedded, SCO OpenServer 5/6, UnixWare 7

Dimensions
CP-114EL 67.21 x 103.58 mm (2.69 x 4.08 in)CP-114EL-I 67.21 x 136.93 mm (2.69 x 5.48 in)

Operating Temperature
0 to 55°C (32 to 131°F)

Overview:

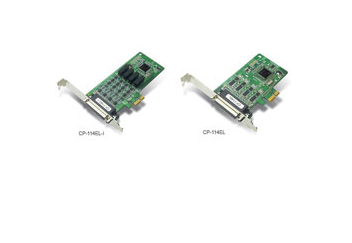

The CP-114EL and CP-114EL-I are smart, 4-port PCI Express boards designed for POS and ATM applications. The boards are a top choice of industrial automation engineers and system integrators, and support many different operating systems, including Windows and Linux. In addition, each of the boards’ 4 RS-232/422/485 serial ports supports a super fast 921.6 Kbps baudrate.

The CP-114EL and CP-114EL-I provide full modem control signals to ensure compatibility with a wide range of serial peripherals, and their PCI Express”x1″ classification allows the boards to be installed in any PCI Express slot.
