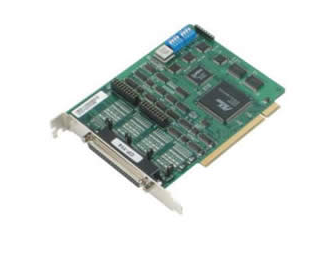

CP-114EL-I-DB25M 4-port RS-232/422/485 low profile PCI Express

CP-114EL-I-DB25M 4-port RS-232/422/485 low profile PCI Express x1 serial board with optical isolation (includes DB25 male cable)

Highlights

  • 4-port high speed communication board (2 ports for RS-422/485, 2 ports for either RS-232 or RS-422/485)
  • RS-485 ADDC data control or by RTS
  • Various connection options
  • Data transmission speed up to 921.6 Kbps
  • On-chip hardware flow control
  • Surge Protection and Optical Isolation available as options
  • Built-in termination resistors

Description

Includes

  • 1 x CP-114 Series unit
  • 1 x warranty statement
  • 1 x installation guide
  • 1 x DB9 or DB25 male connection cable (DB9M and DB25M models only)

Specs:

Serial Standards
2 ports for RS-422/485
2 ports for either RS-422/485 or RS-232

Number of Ports
4

Number of Boards
4

Operating Temperature
0 to 55°C

Operating Humidity
5 to 95% RH

Storage Temperature
-20 to 85°C

Regulatory Approvals
FCC, CE

Power Consumption
CP-114:720 mA (+5V), 43 mA (+12V), 31 mA (-12V)
CP-114S,CP-114 V41:735 mA (+5V), 44 mA (+12V), 33 mA (-12V)
CP-114I:1160 mA (+5V), 35 mA (+12V), 48 mA (-12V)
CP-114IS, CP-114I V41:1170 mA(+5V), 36 mA (+12V), 49 mA (-12V)

ESD Protection
25 KV ESD (CP-114S, CP-114IS)

Isolation Protection
2 KV (CP-114I, CI-114IS)

Overview:

The CP-114 Series of multiport serial boards is designed for RS-232 and RS-422/485 industrial communication. The CP-114 Series has 2 ports for RS-232 or RS-422/485, selectable by jumper, and 2 ports for RS-422/485, with each RS-422/485 port able to control up to 32 devices in a multidrop environment.

By using ADDC (Automatic Data Direction Control) intelligence, applications can easily manage the half-duplex RS-485 port’s data transmitting and receiving without the need for writing extra code. In addition, on-chip hardware flow control and built-in termination resistors guarantee data integrity, and optical isolation and surge protection options are also available to deliver high reliability. All of the above attributes make the CP-114 Series of multiport serial boards suitable for harsh industrial applications.
