CSM-200-1218 10/100BaseT(X) to 100BaseFX single-mode media

CSM-200-1218 10/100BaseT(X) to 100BaseFX single-mode media converter module, SC connector

NOTE: This product is not designed for standalone operation. It must be installed within a TRC-190 unit.

Highlights

  • LFP (Link Fault Pass-through) and FEF (Far End Fault)
  • Two different operation modes
    • Store-and-Forward
    • Pass Through
  • Auto Negotiation
  • Supports TS-1000 Version 2 protocol
  • Supports Turbo Ring V2
  • Plug and Play
  • Hot-swap
Categories: , , ,

Description

Includes

  • 1 x CSM-200 Series unit
  • 1 x installation guide
  • 1 x warranty statement

Specs:

Standards

IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X), 100BaseFX

RJ45 Ports 10/100BaseT(X)

Fiber Port(s) 100BaseFX (SC/ST connectors)

LED Indicators PWR, Fiber Link, 10/100M (TP port)

Overview:

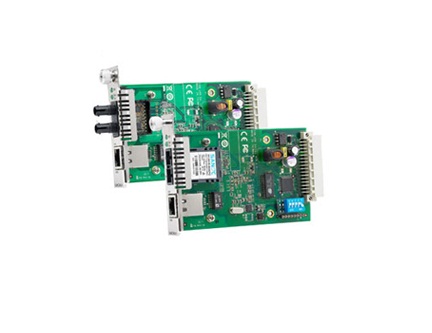

The CSM-200 modules are slide-in Ethernet-to-fiber media converters for the NRack System. The modules provide media conversion from 10/100BaseT(X) to 100BaseFX (SC/ST connectors), and can be installed in any NRack System chassis.
