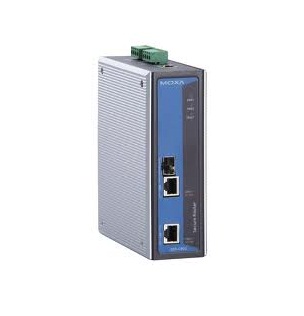

EDR-G902-T Industrial Gigabit Firewall/NAT secure router

Description

Includes

• EDR-G902 secure router
• RJ45 to DB9 console port cable
• Documentation and software CD
• Hardware installation guide (printed)
• Warranty card

Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX

Protocols
SNMPv1/v2c/v3, DHCP Server/Client, TFTP, NTP, HTTP, HTTPS, Telnet, SSH, Syslog, SMTP, LLDP, PPPoE, PPTP, Dynamic DNS, QoS (Quality of Service), VRRP

Routing
Static routing, RIP V1/V2

Flow Control
IEEE 802.3x flow control, back pressure flow control

RJ45 Ports
10/100/1000BaseT(X) auto negotiation speed

Fiber Ports
100/1000BaseSFP slot

LED Indicators
PWR1, PWR2, FAULT, 10/100/1000M

Alarm Contact
One relay output with current carrying capacity of 1 A @ 24 VDC

Digital Inputs
1 input

• +13 to +30 V for state “1”
• -30 to +3 V for state “0”
• Max. input current: 8 mA

Firewall
Stateful inspection
Filter: IP and MAC address, ports, protocol
Bridge mode firewall

NAT
N-to-1, 1-to-1, and port forwarding

VPN
IPsec, L2TP, PPTP

Overview

The EDR-G902 series is a Gigabit performance, all-in-one Firewall/VPN/Router. It is designed for Ethernet security applications in sensitive remote control or monitoring networks, and provides an Electronic Security Perimeter for the protection of critical cyber assets such as pumping stations, DCS, PLC systems on oil rigs, and water treatment systems. The EDS-G902 series includes the following cyber security features:

Firewall: Controls network traffic between different trust zones.Network Address Translation (NAT), which shields the internal LAN from unauthorized activity from outside hosts, is included.
Virtual Private Networking (VPN)*: VPNs are designed to provide users with secure communication links when accessing a private network from the public Internet. Uses IPSec (IP Security) for encryption and authentication of all IP packets at the network layer to ensure confidentiality and sender authentication.

The EDR-G902’s Quick Automation Profile function supports most common Fieldbus protocols, including EtherCAT, EtherNet/IP, FOUNDATION Fieldbus, Modbus/TCP, and PROFINET. Users can easily create a secure Ethernet Fieldbus network from a user-friendly web UI with a single click operation. In addition, wide temperature models are available that operate reliably in hazardous, -40 to 75°C environments.
