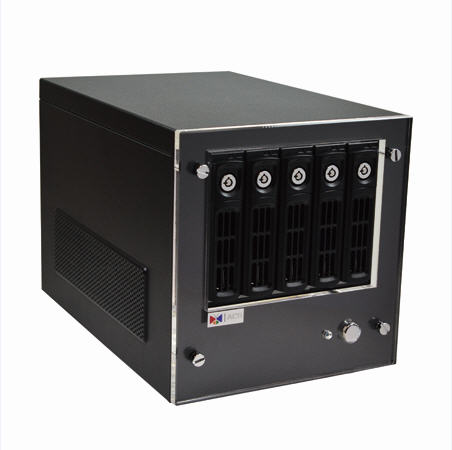

GNR-3000

Description

• General
Full Name ACTi Standalone Network Video Recorder GNR-3000
Maximum Number of Clients 4* (without local client)
Maximum Number of Cameras 64
Free License 64 Channels
Compression H.264, MPEG-4, MJPEG
Maximun local display resolution 1920×1200
• Live View
Display Layout Mode 4:3 monitor: 1, 4, 5, 6, 8, 9, 10, 16, 25, 36, 49, 64
16:9 wide screen monitor: 1, 4, 6, 9, 12, 18, 24, 35, 48, 64
View Manager An interface to define display layouts and the pre-set cameras within layout in the public or private view
View Patrol Automatic switch between different views or devices
View Panel Contains the list of pre-defined views for quick launch
Digital Zoom Zoom in/out digitally by PiP (Picture-in-Picture)
Camera Tree Drag and drop video source from camera tree into display layout; display camera status on the tree
Manual Recording / Snapshot Instant recording upon mouse click / Instant snapshot upon mouse click or hot key
Event Panel Display event status upon alarm or upon connection loss or recovery
Two-way Audio Audio sound from and to all the audio supported devices; audio broadcast to multiple devices at the same time
Dual Stream Management Live view of stream 1 or stream 2 of dual stream devices
Instant Playback Instant playback in live view window
• e-Map
Layout Area maps with camera icons, small live view windows; hyperlinked
Map Switch and Tour Manual switch and auto tour modes selectable
Setup e-Map image upload; camera positioning; map linking
PTZ Mode Mouse PTZ mode to control e-Map video streams
• PTZ
Control Pan, tilt and zoom controls; speed control; both buttons and mouse controls
Preset Points and Tours Create preset points; create auto tours between preset points
Number of Preset Points 32
Joystick USB based joystick supported
Default Protocol Auto-detect camera’s PTZ protocol. Available protocols: ACTi, Pelco-P, Pelco-D, Dynacolor, Visca
• Recording
Scheduled Recording Record video with user defined schedule
Event Recording Record video when the alarm event is triggered, including the pre-event buffered video clip
Speed Up Different recording frame rate settings for non-event and triggered event
Manual Recording Instant recording upon mouse click
Dual Stream Management Recording of stream 1 or stream 2 of dual stream devices
Recording Frame Rate Max 1920 fps total; Max 30 fps per camera
Maximum Recording Throughput 384 Mbps
• Storage
Interface Serial ATA
HDD Bay Maximum 5 disks (1 system disk included)
RAID Level Software RAID 0, 1
External Storage Support eSATA, iSCSi, USB mass storage
• Search & Playback
Time Based Video Search Search video recordings by time or channel
Event Based Video Search Search alarm triggered video recordings
Playback Control Continuous forward and backward playback with speeds 1x/2x/4x/8x or frame-by-frame; pause; stop
Synchronized Playback Up to 9 channels for local display; up to 64 channels for remote client
Manual Snapshot Instant snapshot from playback upon mouse click
Digital Zoom Zoom in/out digitally by PiP (Picture-in-Picture)
Video Cropping Crop a short video clip from long recording file and save it as an independent file
Video Export Export video clips in AVI or RAW format; text overlay supported
• Event Management
Event Trigger Video motion detection; Passive IR sensor; External device through digital input; Network loss and recovery; Server loss and
recovery; Disk full; Disk not found
Event Response
Record video; Pop-up window with live video; Switch to hotspot window; Play beep sound;
Activate external device through digital output; Upload snapshot to FTP server; Execute system command to activate other
programs; E-mail notification with snapshots; Command a PTZ device to go to a preset point
Manual Event Manually activate external devices through digital output via live view monitor
Scheduler Define the schedule of event manager
• System
Permission Control Multi-group/users, liveview/playback/setup/remote level permission
Operating System Win 7 Std. Embedded
Language Multi-language support
