SPECIFICATIONS
|
MODEL |

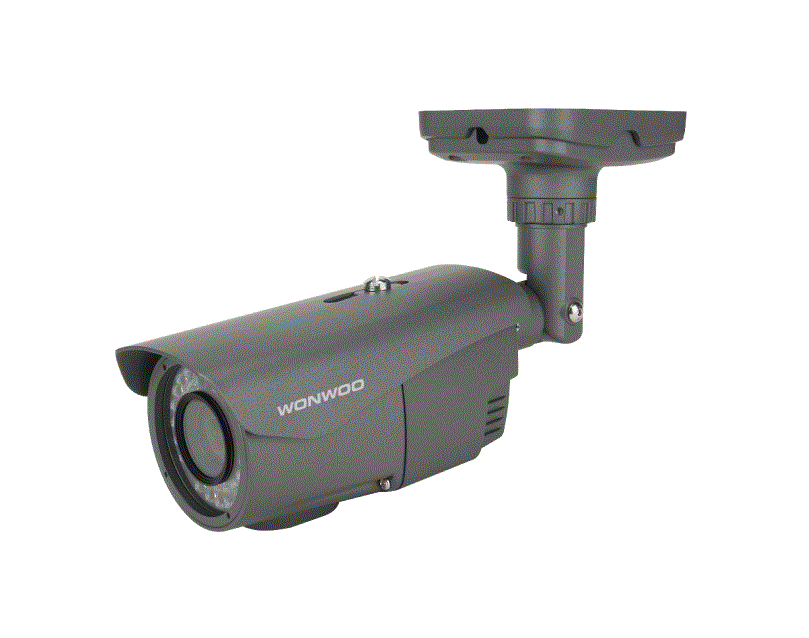

IRV-M12-40 |
|
|
|
|
1/3” Panasonic CMOS |
|
|
|
Image Sensor |
|
||
|
Total pixels |
2010(H) x 1108(V) = 2,227,080 |
|
|
|
Active pixels |
1944(H) x 1092(V) = 2,122,848 |
|
|
|
Scanning system |
Progressive |
|
|
|
Resolution |
Digital : 1080P(30P) , 720P(60P) / Analog : 750TV lines |
|
|
|
Min. illumination |
Color : 1.0Lux, BW : 0.5Lux, Color DSS : 0.002Lux , BW DSS : 0.0008Lux |
|
|
|
Video output |
Digital : BT.1120, HD-SDI / Analog :1.0Vp-p(75 ohm, composite) |
|
|
|
S/N ratio |
More than 50dB(AGC off) |
|
|
|
Gain Control |
0~20 |
|
|
|
Shutter Speed |
1/30 ~ 1/30,000 / 1/25 ~1/30,000 |
|
|
|
Digital Shutter Speed |
Off / x2 / x3 / x4 |
|
|
|
Brightness |
0~20steps |
|
|
|
WDR/BLC |
Off / WDR / BLC |
|
|
|
Day&Night |
Auto / Ext / Day / Night |
|
|
|
DNR |
Off / LOW / MIDDLE / HIGH |
|
|
|
Mirror |
Off / H / V / H+V |
|
|
|
Sharpness |
Off / On |
|
|
|
E.Zoom |
0~x32 |
|
|
|
Privacy Mask |
Off / 28positions |
|
|
|
Motion Detection |
Off / 8positions |
|
|
|
Comm. |
Baud rate : 2400 / 4800 / 9600 / 19200 / 38400 / 57600 |
|
|
|
IR LED |
40 Units 850nm Infrared LED, 20,000hrs |
|
|
|
Night View Distance |
Outdoor 35m~40m |
|
|
|
Lens |
2.8~11mm Megapixel Varifocal lens |
|
|
|
Power Source |
DC 12V / AC 24V ± 10% |
|
|
|
Power comsumption |
Max : 700mA |
|
|
|
Operating Temperature |
-20℃ ~60℃ / 30% ~80% |
|
|
|
/Humidity |
|
|
|
|
Storage Temperature |
-30℃~60℃ / 20% ~90% |
|
|
|
/Humidity |
|
|
|
|
Power Input |
Connector |
|
|
|
Video Output |
Connector |
|
|
|
Cable |
5C-2V (Max. Distance 120m) |
|
|
|
Dimension(mm) |
72.34(W) x 72.34(H) x 140(L) |
|
|
|
Weight |
approx 1.14Kg (Full package) |
|
|
