MGate 5102-PBM-PN Series

Features and Benefits

  • Protocol conversion between PROFIBUS and PROFINET Download Moxa's MGate Gateway Brochure and White Paper
  • Automatic scan of PROFIBUS devices, and easy configuration
  • microSD card for configuration backup
  • Built-in Ethernet cascading for easy wiring
  • Redundant dual DC power inputs and relay output supported
  • Embedded I/O monitoring and diagnostic tools
  • Web-based GUI for I/O data visualization
  • -40 to 75°C wide operating temperature models available
  • Supports Moxa’s MXview industrial network management software via the MXview Plug-in
Categories: , ,

Description

Overview

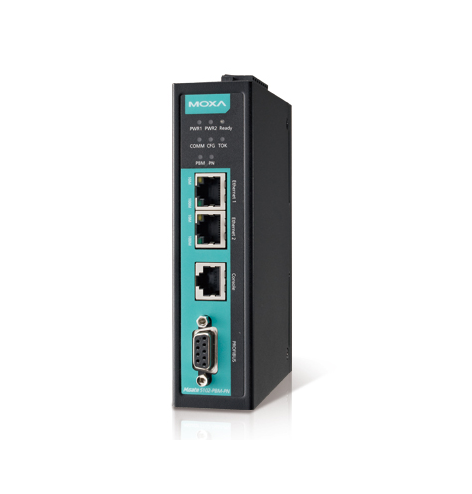

The MGate 5102-PBM-PN gateway provides a communication portal between PROFIBUS devices (e.g., PROFIBUS PLC or drive) and the PROFINET host. All models are protected with a rugged metallic casing, are DIN rail mountable, and offer optional built-in optical isolation. The PROFIBUS and Ethernet status LED indicators are provided for easy maintenance. The rugged design is suitable for industrial applications such as oil & gas, power, process automation, and factory automation.

Ethernet Interface
Protocol PROFINET RT
Number of Ports 2 (1 IP)
Speed 10/100 Mbps, Auto MDI/MDIX
Connector 8-pin RJ45
Magnetic Isolation Protection 1.5 kV built-in
• PROFIBUS Interface
Protocol PROFIBUS DP-V1 Master
Number of Ports 1
Data Rate 9600 bps to 12 Mbps
Connector DB9 female
Isolation 2 kV (built-in)
• Serial Signals (Serial Console)
Connector 8-pin RJ45
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• Software
Configuration Options Windows utility, serial console, web console (HTTP/HTTPS), Telnet/SSH console
Utilities MGate Manager for Windows 2000, Windows XP/2003/Vista/2008/7 x86/x64
• Physical Characteristics
Housing Metal
Weight 500 g
Dimensions 36 x 105 x 140 mm (1.42 x 4.13 x 5.51 in)
• Environmental Limits
Operating Temperature Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
• Power Requirements
Input Voltage 12 to 48 VDC
Power Connector Terminal block
Power Consumption 430 mA @ 12 VDC
• Standards and Certifications
Safety UL 508, EN 60950-1
Hazardous Location UL/cUL Class 1 Division 2 Groups A/B/C/D, ATEX Zone 2 (pending)
EMC CE, FCC
EMI EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS EN 55024,
EN 61000-4-2 (ESD) Level 3,
EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 4,
EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3,
EN 61000-4-8,
EN 61000-4-11,
EN 61000-4-12
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Vibration IEC 60068-2-6
• Reliability
MTBF (mean time between failures) 980,417 hrs
• Warranty
Warranty Period 5 years
