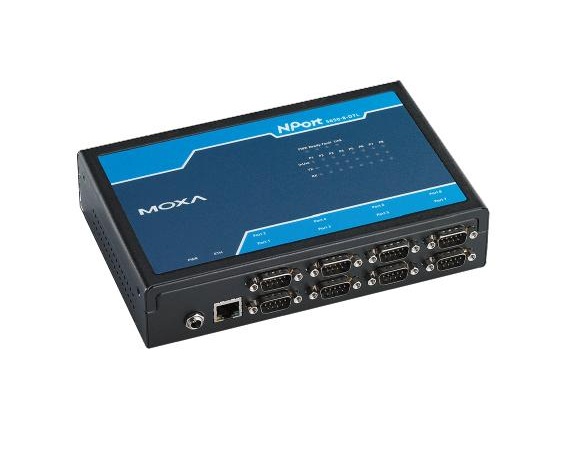

NPort 5610-8-DTL-T 8-port RS-232 desktop device server with DB9

8-port RS-232 desktop device server with DB9 male connectors, -40 to 75°C operating temperature

Highlights

  • 8 serial ports supporting RS-232/422/485
  • Compact desktop design
  • 10/100M auto-sensing Ethernet
  • Built-in 15 KV ESD protection for all serial signals
  • Choice of configuration methods: Web console, Telnet console, and Windows utility
  • Versatile socket operation modes, including TCP Server, TCP Client, UDP, and Real COM
  • SNMP MIB-II for network management

Description

Includes

  • 1 x NPort 5600-8-DTL device server
  • 1 x Power cord and adaptor (standard temp. models only)
  • 2 x metal plates (wall mount kit)
  • 1 x Documentation and software CD
  • 1 x Quick installation guide (printed)
  • 1 x Warranty card

Number of Ethernet Ports
1

Speed
10/100 Mbps, auto MDI/MDIX

Connector
8-pin RJ45

Magnetic Isolation Protection
1.5 KV built-in

Number of Serial Ports
8

Serial Standards
NPort 5610-8-DTL: RS-232
NPort 5650-8-DTL/5650I-8-DTL: RS-232/422/485

Connector
DB9 male

Operating Temperature
Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Input Voltage
12 to 48 VDC

Overview

NPort 5600-8-DTL device servers can conveniently and transparently connect 8 serial devices to an Ethernet network, allowing you to network your existing serial devices with only basic configuration. You can both centralize management of your serial devices and distribute management hosts over the network. Since the NPort® 5600-8-DTL device servers have a smaller form factor compared to our 19-inch models, they are a great choice for applications that need additional serial ports, but for which mounting rails are not available.

Convenient Design for RS-485 Applications

The NPort® 5650-8-DTL device servers support selectable 1 KΩ and 150 KΩ pull high/low resistors and a 120 Ω terminator. In some critical environments, termination resistors may be needed to prevent the reflection of serial signals. When using termination resistors, it is also important to set the pull high/low resistors correctly so that
the electrical signal is not corrupted. Since no set of resistor values is universally compatible with all environments, NPort® 5600-8-DTL device servers use DIP switches to allow users to adjust termination and pull high/low resistor values manually for each serial port.

LED Indicators to Ease Your Maintenance Tasks


The System LED, Serial Tx/Rx LEDs, and Ethernet LEDs (located on the RJ45 connector) provide a great tool for basic maintenance tasks and help engineers analyze problems in the field. The NPort® 5600’s LEDs not only indicate current system and network status, but also help field engineers monitor the status of attached serial devices.
