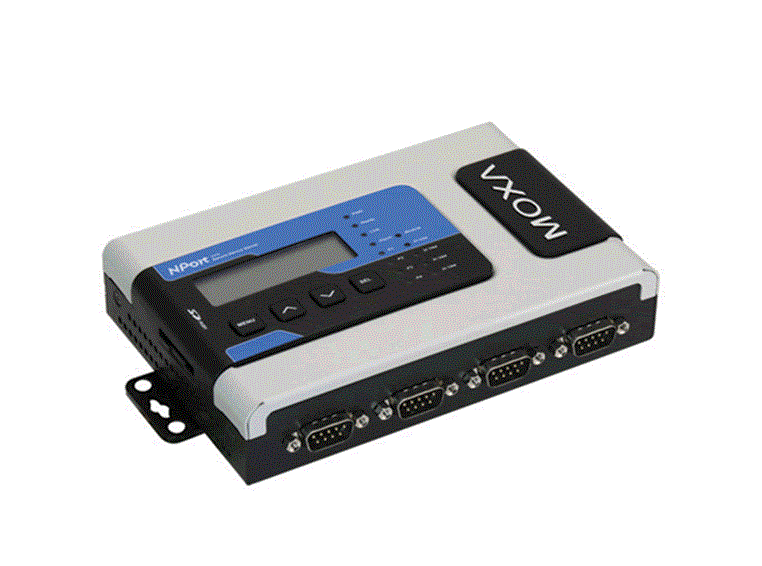

NPort 6450, 4-port RS-232/422/485 secure terminal server

4-port RS-232/422/485 secure device server

The NPort® 6450 is a 4-port device server that uses the SSL and SSH protocols to transmit encrypted serial data over Ethernet. Up to 4 serial devices of any type can be connected to the NPort® 6450, witn all four devices using the same IP address. The Ethernet port can be configured for a normal or secure TCP/IP connection.

Categories: , , ,

Description

Number of Ports
1

Speed
10/100 Mbps, auto MDI/MDIX

Fiber Port
100BaseFX, SC connector

Number of Ports
4

Serial Standards
RS-232/422/485

Connector
DB9 male

Slot Type
SD socket (supports up to 1 GB)

Standard
Real COM, TCP Server, TCP Client, UDP, Pair Connection, RFC2217, Terminal, Reverse Telnet, Ethernet Modem, Printer, PPP, Disabled

Secure
Secure Real COM, Secure TCP Server, Secure TCP Client, Secure Pair Connection, SSH, Reverse SSH

Operating Temperature
0 to 55°C (32 to 131°F)

Input Voltage
12 to 48 VDC
