NPort P5150A 1-port RS-232/422/485 PoE device server, 0 to 60°C

1-port RS-232/422/485 PoE device server, 0 to 60°C operating temperature

Highlights

IEEE 802.3af-compliant PoE PD equipment
Speedy 3-step web-based configuration
Surge protection for serial, Ethernet, and power lines
COM port grouping and UDP multicast applications
Screw connectors for secure installation
Real COM/TTY drivers for Windows and Linux
Standard TCP/IP interface and versatile TCP and UDP operation modes

Description

Includes

NPort P5150A device server
4 stick-on pads
Documentation and software CD
Quick installation guide (printed)
Warranty card

Ethernet Interface

Number of Ports
1

Speed
10/100 Mbps, auto MDI/MDIX

Connector
8-pin RJ45

Magnetic Isolation Protection
1.5 KV built-in

Serial Interface

Number of Ports
1

Serial Standards
RS-232/422/485

Connector
DB9 male

Serial Line Protection
15 KV ESD protection for all signals, Level 2 Surge, EN61000-4-5

Operating Temperature
Standard Models: 0 to 60°C (32 to 140°F)

Input Voltage
12 to 48 VDC (supplied by power adapter) or 48 VDC (supplied by PoE)

Overview

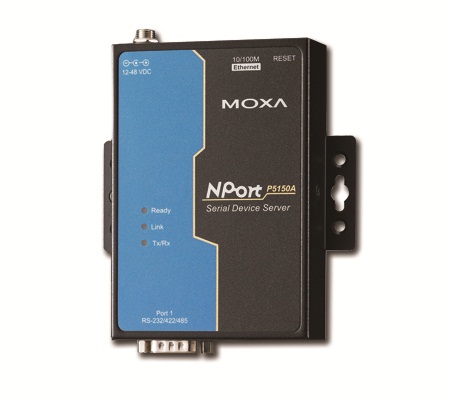

NPort® P5150A device servers are designed to make serial devices network-ready in an instant. It is a PD device and is IEEE 802.3af compliant, so it can by powered by a PoE PSE device without an additional power supply. Use the NPort® P5150A device servers to give your PC software direct access to serial devices from anywhere on the network. The NPort® P5150A device servers are ultra lean, ruggedized, and user friendly, making simple and reliable serial to Ethernet solutions possible.
