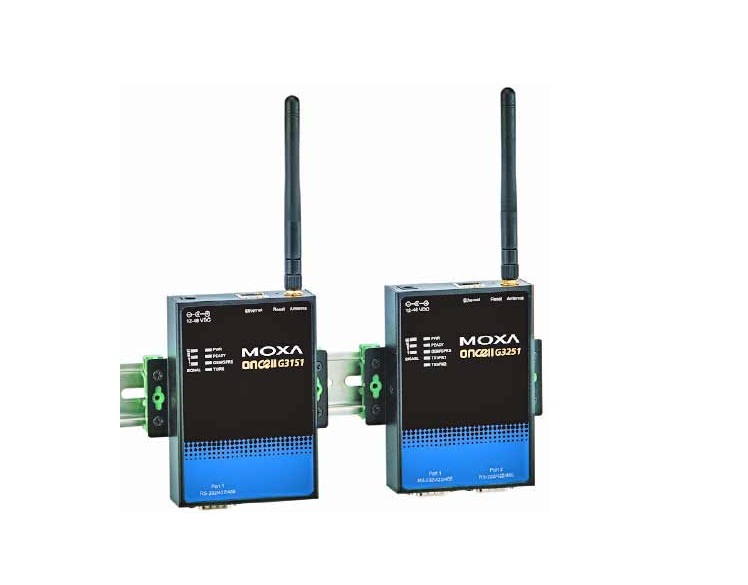

OnCell G3151, 1-port IP modem

1-port IP modem, RS-232/422/485 The OnCell G3111 and G3151 are cost effective cellular IP modems that can conveniently and transparently connect devices to a cellular network, allowing you to network your existing serial devices with only basic configuration. The OnCell provides versatile operation modes that make data transmission between the serial and cellular interfaces bi-directional. The G3111 and G3151 are compact and can be used on a desktop or mounted on a DIN-rail. The products come with a 12 to 48 VDC power input and have 2 KV EFT/Surge protection to allow the use of different types of field power sources. The serial ports are also protected by 15 KV ESD line protection to keep your system safe from unexpected electrical discharges.

Description

Cellular Interface
Standards:GSM/GPRS
Band Options:Quad-band 850/900 and 1800/1900 MHz
GPRS Multi-Slot Class:Class 10
GPRS Terminal Device: Class B

Serial Communication

G3111: 1 RS-232 port
G3151: 1 RS-232/422/485 port
ESD Protection:15 KV
Power EFT/Surge Protection:2 KV

Power Requirements
Input Voltage:12 to 48 VDC
Data Link:335 to 900 mA (peak) @ 12 V
