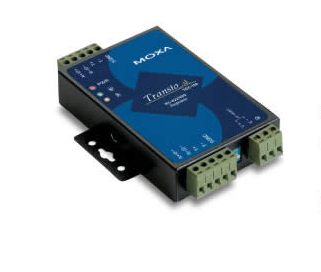

TCC-120I RS-422/485 converter/repeater with 2 KV optical isolation

Highlights

  • Boost serial signal to extend transmission distance
  • Wall or DIN-rail mounting
  • Terminal block for easy wiring
  • Power input from terminal block
  • DIP switch setting for built-in terminator (120 ohms)
  • Boost RS-422 or RS-485 signal, or convert RS-422 to RS-485
  • 2 KV isolation protection (TCC-120I)

Description

Includes

  • 1 x TCC-120/120I unit
  • 1 x installation guide
  • 1 x warranty statement
  • 1 x DK-35A (DIN-rail mounting kit)

Specs:

Operating Temperature
-20 to 60°C (-4 to 140°F)

Source of Input Power
RS-232 port (TxD signal) or power input jack

Input Voltage
12 to 48 VDC

Power Consumption
TCC-120 98 mA @ 12 V, 1.18 W
TCC-120I 234 mA @ 12 V, 2.81 W

Overview:

The TCC-120 and TCC-120I are RS-422/485 converters/repeaters designed to extend RS-422/485 transmission distance. Both products have a superior industrial-grade design that includes DIN-rail mounting, terminal block wiring, and external terminal block for power. In addition, the TCC-120I supports optical isolation for system protection. The TCC-120 and TCC-120I are ideal RS-422/485 converters/repeaters for critical industrial environments.
