Description
• Device

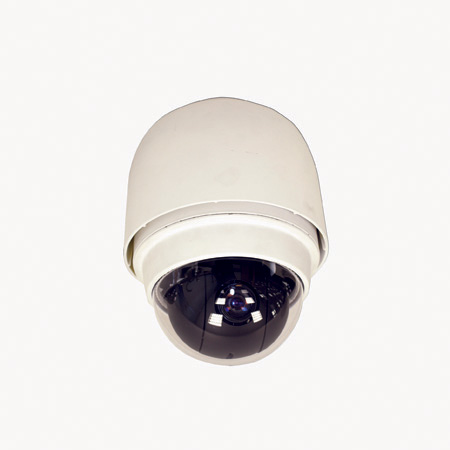

Device Type Speed Dome Camera
Image Sensor Interlaced Scan CCD
Sensor Size 1/4″ (3.2 x 2.4 mm)
Horizontal Resolution 650 TVL
Day / Night Yes
Minimum Illumination Color: 0.1 lux; B/W: 0.01 lux
Color to B/W switch DSP based switch, configurable
Mechanical IR Cut Filter Yes
IR Sensitivity Range 700 – 1100 nm
IR LED No
Electronic Shutter 1/1 – 1/10,000 sec (NTSC/PAL)
• Lens
Focal Length / Aperture Zoom, f3.4 – 122.4 mm / F1.6 – 4.5
Iris Auto iris
Focus Auto focus
Horizontal Viewing Angle 57.8° – 1.7°
• PTZ
Zoom Ratio 36x optical; 12x digital
Zoom Speed 4 sec (1x to 36x) Manual
Manual Panning Speed 0.5° ~ 90° /s
Manual Tilting Speed 0.5° ~ 90° /s
Preset Panning Speed 5° ~ 400° /s
Preset Tilting Speed 5° ~ 400° /s
Panning Range 0° ~ 360° endless
Tilting Range -10° ~ 190°
Control Remote manual control; 256 preset points; 8 preset tours; auto scan
Preset Panning Accuracy 0.225°
Preset Tilting Accuracy 0.45°
Absolute Positon Yes
Protocol DSCP, URL Command
• Video
Compression H.264, MPEG-4 SP, MJPEG
Maximum Frame Rate vs.
Resolution
30 fps at 720 x 480 (Full D1, NTSC); 25 fps at 720 x 576 (Full D1, PAL)
30 fps at 352 x 240 (CIF, NTSC); 25 fps at 352 x 288 (CIF, PAL)
30 fps at 160 x 112 (QCIF, NTSC); 25 fps at 176 x 144 (QCIF, PAL)
Multi-Streaming Simultaneous dual streams based on two configurations
Bit Rate 28 Kbps – 6 Mbps (per stream)
Bit Rate Mode Constant, Variable
S/N Ratio More than 50 dB
Image Enhancement Superior WDR; Backlight compensation; White balance: automatic, predefined and manual;
Brightness; Saturation; Contrast ; Automatic gain control; 2D+3D Digital noise reduction
Privacy Mask 16 configurable regions
Text Overlay User defined text on video
Image Orientation Image flip and mirror
• Audio
Compression 8 kHz, Mono, PCM, 16 bit encoding; G.711
Audio-In 3.5 mm Phone Jack
Audio-Out 3.5 mm Phone Jack
• Network
Protocol & Service TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP
Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 connector
Security IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control
• Alarm
Alarm Trigger Video motion detection (3 regions); External device through digital input
Alarm Response Notify control center; Go to PTZ preset point or preset tour; Change camera settings; Command other devices; E-mail notification with snapshots;
Upload video, snapshot to FTP server; Activate external device through digital output
• Interface
Analog Video Output 1, CVBS, 1.0Vp-p with 75 Ω BNC connector
Digital Input 8, terminal block
Digital Output 1, terminal block
• General
Power Source / Consumption AC 24V / 65 W (heater on)
Weight 5800 g (12.9 lb)
Dimensions (Ø x H) 172 mm x 302.5 mm (6.7″ x 11.9″); 190 mm x 302.5 mm (7.5″ x 11.9″) with sunshield

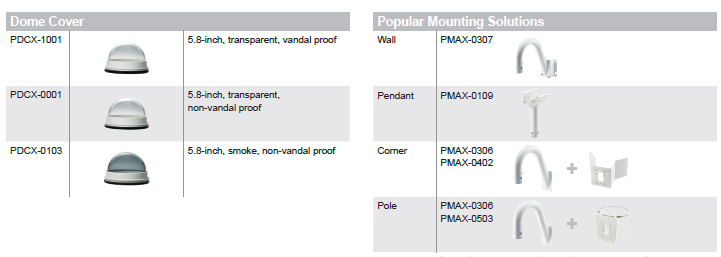

Environmental Casing Weatherproof (IP66 rated); Transparent dome cover
Mount Type Pendant, Wall, Corner, Pole
Starting Temperature -45 °C ~ 50 °C (-49 °F ~ 122 °F)
Operating Temperature -45 °C ~ 50 °C (-49 °F ~ 122 °F)
Operating Humidity 10% ~ 85% RH
Approvals Camera: CE, FCC, IP66; Adapter: CE, TUV-GS, UL, RCM, CCC
• Integration
Unified Solution Fully compatible with ACTi software
ISV Integration Software Development Kit (SDK) available; ONVIF Compliant
Firmware Access Browser Microsoft Internet Explorer 6.0 or newer
