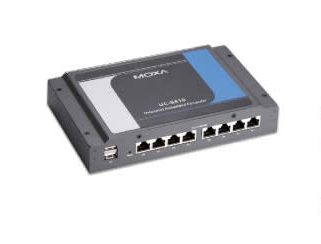

UC-8410-T-LX RISC-based industrial embedded computer

UC-8410-T-LX RISC-based industrial embedded computer with 8 serial ports, 4 DIs, 4 DOs, 3 LANs, CompactFlash, USB, Linux OS, -40 to 75°C operating temperature

Highlights

  • Intel XScale IXP435 533 MHz processor
  • 256 MB DDR2 SDRAM and 16 MB Flash ROM onboard
  • 16 MB NOR Flash onboard to store OS, 32 MB NAND Flash onboard for data storage
  • 256 KB battery backup SRAM
  • 8 RS-232/422/485 serial ports
  • 4 digital input and 4 digital output channels
  • 3 10/100 Mbps Ethernet ports
  • 2 USB 2.0 hosts for mass storage devices
  • CompactFlash socket for storage expansion
  • Ready-to-run Linux platform
  • DIN-Rail or wall mounting installation
  • Robust, fanless design
  • Wide temperature model available

Description

Includes

  • 1 x UC-8410 Series unit
  • 1 x support CD/DVD
  • 1 x installation guide
  • 1 x warranty statement
  • 1 x wall mounting kit
  • 1 x DIN-rail mounting kit
  • 1 x Ethernet cable (RJ45 to RJ45 cross-over cable, 100 cm)
  • 1 x CBL-4PINDB9F-100 (4-pin pin header to DB9 female console port cable, 100 cm)
  • 1 x universal power adaptor (including power jack converter)

Specs:

CPU
Intel XScale IXP435, 533 MHz

OS (pre-installed)
Linux

DRAM
256 MB DDR2 SDRAM onboard (supports DDR2 up to 512 MB)

SRAM
256 KB, battery backup

Flash
16 MB NOR Flash onboard to store OS (supports up to 32 MB)
32 MB NAND Flash onboard to store data

USB
USB 2.0 full speed x 2 (OHCI)

LAN
3 auto-sensing 10/100 Mbps ports (RJ45)

Serial Standards
8 RS-232/422/485 ports, software-selectable (8-pin RJ45)

Operating Temperature
Standard Models -10 to 60°C (14 to 140°F)
Wide Temp. Models -40 to 75°C (-40 to 167°F)

Input Voltage
12 to 48 VDC (3-pin terminal block)

Overview:

The UC-8410 embedded computers come with 8 RS-232/422/485 serial ports, 3 Ethernet ports, 4 digital input channels, 4 digital output channels, a CompactFlash socket, and 2 USB 2.0 hosts. The UC-8410 computers use the Intel XScale IXP435 533 MHz RISC CPU. This powerful computing engine supports several useful communication functions, but does not generate a lot of heat. The built-in 16 MB NOR Flash ROM and 256 MB SDRAM give you enough memory to run your application software directly on the UC-8410, and the 32 MB NAND Flash can be used for data storage. Moreover, the 256 KB SRAM offers a better data retention mechanism for avoiding data loss.

The UC-8410 computers support RS-232/422/485 serial ports, digital I/O channels, and has 3 LAN ports, making them ideal as communication platforms for industrial applications that require network redundancy.

The UC-8410 computers come with the Linux 2.6 platform pre-installed to provide an open standard operating system for software program development. Software written for a desktop PC can be easity ported to the UC-8410 without modifying the code—all that’s needed is a common compiler. This makes the UC-8410 an optimal solution for minimizing the cost and effort required for industrial applications.

In addition to the standard model, a wide temperature (-40 to 75°C) model of the UC-8410 is also available for use in harsh industrial environments.
