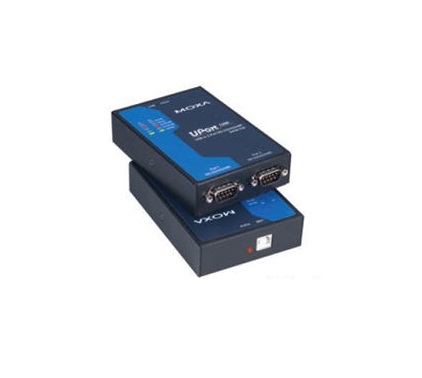

UPort 1250I 2-port RS-232/422/485 USB-to-serial converter

UPort 1250I 2-port RS-232/422/485 USB-to-serial converter with 2 KV optical isolation, adaptor included

Highlights

  • Hi-Speed USB 2.0 for up to 480 Mbps USB transmission
  • 921.6 Kbps maximum baudrate for super fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • 15N high retention type B connector
  • Drivers provided for Windows, WinCE, and Linux
  • LEDs for easy monitoring
  • 15 KV ESD protection for all serial ports
  • Locking power cord for the UPort 1250I
Categories: , ,

Description

Includes

  • 1 x UPort 1250/1250I unit
  • 1 x support CD/DVD
  • 1 x installation guide
  • 1 x warranty statement
  • 1 x USB-IF certified cable
  • 1 x mini DB9 female to terminal block adaptor
  • 1 x power adaptor (UPort 1250I)

Specs:

Compliance
USB 1.1/2.0 compliant

Connector
USB type B

Speed
480 Mbps (Hi-Speed USB) and 12 Mbps (Full-Speed USB)

Number of Ports
2

Serial Standards
RS-232/422/485

Connector
DB9 male

Operating Systems
Windows (2000, XP/2003/Vista x86/x64), Win CE 5.0/6.0, Linux 2.4, Linux 2.6 x86/x64

Operating Temperature
0 to 55°C (32 to 131°F)

Power Consumption
UPort 1250 (bus power) 360 mA @ 5 VDC
UPort 1250I (12 to 48 VDC external power) 200 mA @ 12 VDC

Overview:

The UPort 1250/1250I USB-to-serial converters allow you to connect 2 RS-232/422/485 devices to your laptop or workstation through the USB (Universal Serial Bus) port. These plug & play USB solutions are perfect for mobile, instrumentation, and point-of sale applications.
