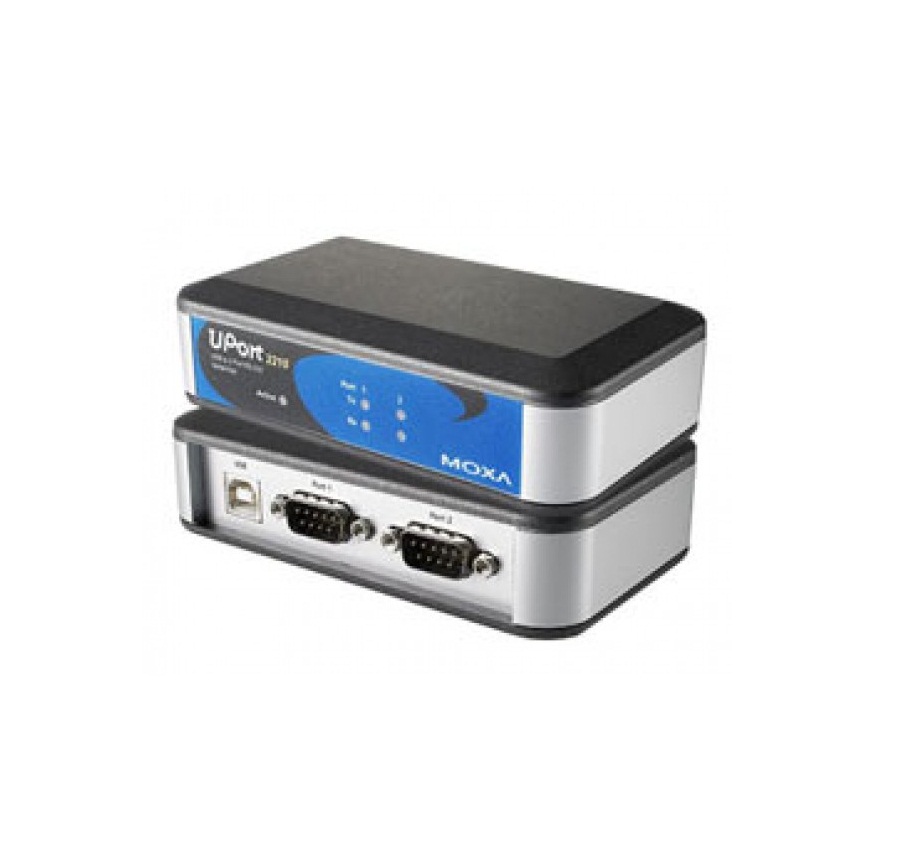

Uport 2210 2-port RS-232 USB-to-serial converter

UPort 2210 2-port RS-232 USB-to-serial converter

Highlights

  • Hi-Speed USB 2.0 for up to 480 Mbps USB transmission
  • 921.6 Kbps maximum baudrate for super fast data transmission
  • Additional I/O and IRQ not needed
  • Built-in 15 KV ESD protection for all serial ports
  • Drivers provided for Windows and Linux
  • Supports Fixed-Base COM Utility for setting the initial extended COM port number
  • LEDs for easy monitoring

Description

Includes

  • 1 x UPort 2210/2410 unit
  • 1 x support CD/DVD
  • 1 x installation guide
  • 1 x warranty statement
  • 1 x USB-IF certified cable

Specs:Compliance
USB 1.1/2.0 compliant

Connector
USB type B

Speed
480 Mbps (Hi-Speed USB) and 12 Mbps (Full-Speed USB)

Number of Ports
UPort 2210 2
UPort 2410 4

Serial Standards
RS-232

Connector
DB9 male

Operating Systems
Windows (2000, XP/2003/Vista/2008 x86/x64), Linux 2.6 x86/x64

Operating Temperature
0 to 55°C (32 to 131°F)

Power Consumption
UPort 2210 140 mA @ 5 VDC
UPort 2410 240 mA @ 5 VDC

Overview:

The UPort 2210 USB-to-serial converters allow you to connect 2 RS-232 devices to your laptop or workstation through the USB (Universal Serial Bus) port. The UPort 2210 are cost-effective solutions for both new and legacy RS-232 devices, and are perfect for mobile, instrumentation, and point-of sale applications.
