UPort 407-T 7-port industrial USB hub, -40 to 85°C oper. temp

Description

Includes

• 1 x UPort 404/407 unit
• 1 x installation guide
• 1 x warranty statement
• 1 x USB-IF certified cable
• 1 x power adaptor (UPort 404/407 only)

Specs:

Compliance
USB 1.1/2.0 compliant

Upstream
1 USB port, Type B connector

Downstream
UPort 404 4 USB ports, Type A connectors
UPort 407 7 USB ports, Type A connectors

Speed
480 Mbps (Hi-Speed USB) and 12 Mbps (Full-Speed USB)

Operating Temperature
Standard Models 0 to 60°C (32 to 140°F)
Wide Temperature Models -40 to 85°C (-40 to 185°F)

Input Voltage
12 to 40 VDC external power

Power Consumption
UPort 404 1300 mA @ 12 VDC, 690 mA @ 24 VDC, 470 mA @ 36 VDC
UPort 407 2300 mA @ 12 VDC, 1130 mA @ 24 VDC, 790 mA @ 36 VDC

Overview:

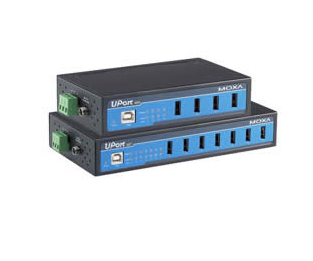

The UPort 404 and UPort 407 are industrial-grade USB 2.0 hubs that expand 1 USB port into 4 and 7 USB ports, respectively. The hubs are designed to provide true USB 2.0 Hi-Speed 480 Mbps data transmission through each port, even for heavy-load applications.

The UPort 404/407 have received USB-IF Hi-Speed certification, which is an indication that both products are reliable, high quality USB 2.0 hubs.In addition, the hubs are fully compliant with the USB Plug & Play spec and provide a full 500 mA of power per port, ensuring that your USB devices will function properly.

The UPort 404/407 hubs’ support of 12-40 VDC power makes them ideal for mobile applications. Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices.

USB-IF Certification

The UPort 404 and UPort 407 USB 2.0 industrial-grade USB hubs have passed USB-IF (USB Implementers Forum) certification. USB-IF verifies a number of strict electrical requirements for the high-speed USB operation of USB hubs designed to the USB 2.0 specification.This means that the UPort 404/407 support Hi-Speed USB 2.0 for up to 480 Mbps USB transmission, which is fully compliant with interoperability requirements, is enough power for devices to function, and provides for a successful transition back to high-speed operation from the suspend state.

ESD Level 4 Protection

Electrostatic discharge (ESD) could be as severe as having more than one thousand volts of ESD with a high rise time (dv/dt) break through the junction layer of protective devices. In order to avoid serious damage, Moxa’s UPort 404/407 USB hubs provide ESD level 4(contact 8 KV, air 15 KV) protection, which increases the quality and value of the user’s end-product.
