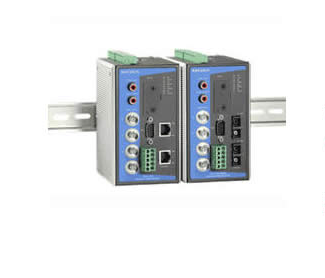

VPort 354 Full motion, 4-channel MJPEG/MPEG4 industrial

VPort 354 Full motion, 4-channel MJPEG/MPEG4 industrial video encoder with 2 10/100BaseT(X) port, 0 to 60°C operating temperature

Description

Highlights

  • Industrial design with -34 to 74°C operating temperature and fiber optic Ethernet port
  • 2 Ethernet ports for cascade and port redundancy
  • SD card slot for local storage capability
  • Modbus/TCP supported for easy communication with SCADA software
  • Video stream up to 120 frames/sec at 4CIF (704 x 480) resolution
  • Free VPort SDK PLUS provides CGI Commands, ActiveX Control, and an API library for system integrators and third-party software developers

Includes

  • 1 x VPort 354 Series unit
  • 1 x support CD/DVD
  • 1 x installation guide
  • 1 x warranty statement
  • 1 x 10-pin terminal block for 1 power input and 4 digital inputs
  • 1 x 8-pin terminal block for the other power input and 2 relay outputs
  • 1 x 5-pin terminal block for the RS-232/422/RS-485 PTZ control port
  • 1 x RJ45 to DB9 console port cable

Specs:

Video Compression MJPEG or MPEG4 (ISO/IEC 14496-2)

Video Inputs 4, BNC connector (1.0 Vpp, 75 ohms)

Video Outputs Via Ethernet port

NTSC/PAL Auto-sensing or manual

Video Viewing Adjustable image size and quality

Timestamp and text overlay

Video Stream

Dual streams (one for MJPEG, the other for MPEG4) at the same video resolution (note that MJPEG only has one quality setting)

Audio Input1 Line-in or MIC-in with RCA connector
Audio Output1 Line-out with RCA connector

Protocols

TCP, UDP, HTTP, SMTP, FTP, Telnet, NTP, DNS, DHCP, UPnP, RTP, RTSP, ICMP, IGMPv3, QoS, SNMPv1/v2c/v3, DDNS

Ethernet

2 10/100BaseT(X) auto negotiating RJ45 ports, or 2 100BaseFX fiber ports (single/multi-mode, SC connector)

Overview:

The VPort 354 is a high performance, 4-channel industrial video encoder that provides up to 4CIF full frame rate performance (NTSC: 704 x 480 @ 30 FPS; PAL: 704 x 576 @ 25 FPS) for each channel, and supports a dual MJPEG/MPEG4 algorithm, making it especially wellsuited for use with distributed surveillance systems in critical industrial applications.

In addition, a continuous pre/post event trigger video record function can help system administrators determine why an alarm was triggered, and 2-way audio is provided for the convenience of real-time communication between system administrators located at the central site, and engineers in the field.
