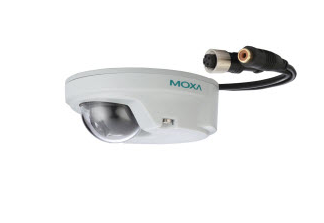

VPort P06-1MP-M12-CAM36 EN 50155 compliant, HD video image

EN 50155 compliant, HD video image, compact IP camera, -25 to 55°C operating temperature, 3.6 mm focal lens

Description

Highlights

  • Compliant with EN 50121-3-2 and essential sections of EN 50155 (standard model supports T1 temperatures, -25 to 55°C; T model supports TX temperatures, -40 to 70°C)
  • 1/2.7” progressive scan camera with maximum 1280 x 800
  • resolution at up to 30 frames/second ››High quality video image with DNR and WDR
  • Up to 3 independent video streams (2 H.264/1 MJPEG)
  • DynaStreamâ„¢ supported for maximized network efficiency
  • Supports DHCP Opt 66/67 for auto-configuration
  • Built-in audio input
  • ONVIF supported for standardization and interoperability

Includes

  • VPort P06-1MP-M12 IP camera
  • L-type Torx screw driver
  • 4 indented hexagon head tapping screws, nuts, gaskets and spring washers
  • Installation stick
  • Quick installation guide (printed)
  • Documentation and software CD
  • Warranty card

Sensor

  • 1/2.7″ HD progressive scan CMOS

Lens

  • 3.6, 4.2, 6 mm fixed focal length

Angle of View

  •   3.6 mm, F1.6: Diagonal 160°, Horizontal 100°, Vertical 71°
  •   4.2 mm, F1.8: Diagonal 97°, Horizontal 80°, Vertical 58°
  •   6.0 mm, F1.8: Diagonal 83°, Horizontal 65°, Vertical 51°

Electronic Shutter

  • Auto

DNR

  • Built-in DNR

WDR

  • Level 1-8

Video Compression

  • H.264 (ISO/IEC 14496-10) or MJPEG

Video Outputs

  • Via Ethernet

Video Viewing

  •   DynaStreamâ„¢ supported for automatic frame rate adjustment
  •   3 privacy mask areas configurable
  •   Adjustable image size and quality
  •   Timestamp and text overlay
  •   OSD (On screen Display) position adjustable
  •   Maximum of 5 simultaneous unica

Power Input

  • Power-over-Ethernet (IEEE 802.3af)

Housing

  • IP66 rain and dust protection, EN 62262 IK8 vandal-proof protection

Dimensions

  • 110 mm (diameter) x 47 mm (height)

Operating Temperature

  • Standard model: -25 to 55°C (-13 to 131°F)
  • Wide Temp. model: -40 to 75°C (-40 to 167°F)

OVERVIEW

The compact VPort P06-1MP-M12 cameras provide a HD (720P,1280 x 720) video image, and feature an H.264/MJPEG IP dome, giving them the versatility and ruggedness to excel in many different installations and environments for mobile IP video surveillance applications. In addition, the cameras feature EN 50155 compliance, vandal-proofing (EN 62262 IK8), -25 to 55°C or -40 to 75 °C (T models) operating temperature, a rugged M12 Ethernet port, 1 audio input, PoE power inputs, IP66 rain and dust protection, a dehumidifying membrane, and a selectable lens.

Excellent Image Quality
The VPort P06-1MP-M12 is equipped with a cutting-edge CMOS sensor, which provides excellent high resolution video images at 1280 x 800 pixels and covers larger areas than legacy analog cameras. With the addition of DNR (Digital Noise Reduction), BLC (Black Level Control), and WDR (Wide Dynamic Range) functions, the VPort P06-1MP-M12 provides an extremely clear picture of the surveillance region.

Rugged Hardware Design
The VPort P06-1MP-M12 is designed to provide both H.264 and MJPEG video streams and transmit a maximum of 3 independent video streams (2 H.264, 1 MJPEG) simultaneously. In addition, Moxa’s DynaStream™ function allows you to change the video frame rate automatically, which can help you control your network bandwidth budget and ease network system management. A DHCP Opt66/67 auto-configuration mechanism simplifies the workload of mass installation and maintenance by backing up the configuration on a TFTP server.

High Video Performance
The VPort P06-1MP-M12’s 47 mm height makes it ideal for tough vehicle environments with limited installation space. It is compliant with EN 50121-3-2 (EMC), EN 61373 for shock and vibration, and essential sections of EN 5015, with standard models designed for T1 temperatures, and wide temp. models designed to withstand TX temperatures (-40 to 70°C; note that the T models are also tested for 10 min. at +15°C over the max. of 75°C), without a fan or other cooling equipment. Moreover, the VPort P06-1MP-M12 achieves the highest enclosure protection, IEC 62262 Class IK8, providing users with a true, vandal-proof IP camera.
