C218T/PCI 8-port RS-232 intelligent Universal PCI and ISA serial

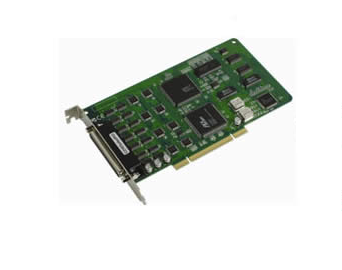

C218T/PCI 8-port RS-232 intelligent Universal PCI and ISA serial board

Highlights

Effectively reduces CPU loading
Drivers provided for a variety of operating systems (Windows, Linux, and Unix)
Choose from a wide range of connection cables and boxes
921.6 Kbps maximum baudrate for super fast data transmission
Provides up to 512 KB of embedded memory
High data throughput for great performance

Description

Includes

1 x C218Turbo Series unit
1 x support CD/DVD
1 x installation guide
1 x warranty statement

Specs:

Comm. Controller
16C550C or compatible x 8

Bus
C218Turbo/PCI 32-bit: Universal PCI
C218Turbo 16-bit: ISA

Connector
DB62 female

Number of Ports
8

Serial Standards
RS-232 (RS-422/485 with optional accessory)

ESD Protection
25 KV per port with connection box Opt8S (must be purchased separately)

Optical Isolation
500 V with connection box Opt8F (must be purchased separately)

Operating Systems
Windows (2000, XP/2003/Vista/2008 x86/x64, 9X/ME/NT), DOS, Linux 2.4, Linux 2.6 (x86/x64), SCO Open Server 5/6, UnixWare 7, QNX 4/6

Dimensions
105 x 180 mm (4.13 x 7.09 in)

Operating Temperature
0 to 55°C (32 to 131°F)

Overview:

The 8-port C218Turbo RS-232 universal PCI and ISA boards come with an ASIC, RISC processor, and large I/O buffer to provide a sustained high throughput on all 8 ports simultaneously.

Drivers are available for Windows, Linux, and Unix, making the boards suitable for a wide range of applications. Models are available for PCI, PCI-X, and ISA buses to provide reliable, high performance solutions for multiport serial communications.
