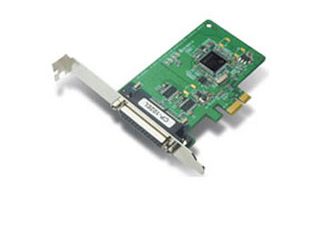

CP-132EL-DB9M 2-port RS-422/485 PCI Express serial board

CP-132EL 2-port RS-422/485 PCI Express serial board

Highlights

  • PCI Express x1 compliant
  • 921.6 Kbps maximum baudrate for super fast data transmission
  • 128-byte FIFO
  • On-chip hardware and software flow control
  • Low profile form factor
  • Drivers for Windows (2000, XP, 2003, Vista, 2008), Linux 2.4/2.6
  • 15 KV ESD protection built-in

Description

Includes

  • 1 x CP-132EL/EL-I unit
  • 1 x support CD/DVD
  • 1 x installation guide
  • 1 x warranty statement

Specs:

Serial Interface
Serial Standards: RS-422/485
Number of Ports: 2
Connector(s): DB25 female

Serial Signals
RS-422: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-4w: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-2w: Data+(B), Data-(A), GND

Overview:

The CP-132EL and CP-132EL-I are 2-port PCI Express boards designed for industrial automation applications that require a long distance, multi-point, PC-based data acquisition solution.

RS-485 multidrop for up to 32 devices within 1.2 km
Each board has 2 RS-422/485 serial ports, each of which can achieve data rates up to 921.6 Kbps. In RS-485 mode, the boards can connect up to 32 daisy-chained RS-485 devices within a range of 1.2 km. For long distance RS-485 communication, choose the CP-132EL-I model, which comes with 2 KV optical isolation protection to prevent equipment damage.

Drivers for Windows and Linux
Moxa continues to support a wide variety of operating systems. Reliable Windows COM and Linux TTY drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.
