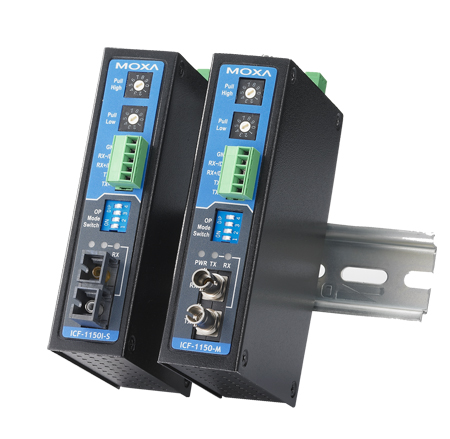

ICF-1170I-M-ST-T CANbus-to-fiber converter, multi-mode, ST connector

ICF-1170I-M-ST-T CANbus-to-fiber converter, multi-mode, ST connector, -40 to 85°C operation

Highlights

  • Transmits up to 2 km over optical fiber
  • Converts CAN signals to fiber and fiber to CAN signals
  • Baudrate up to 1 Mbps
  • Dual power inputs for redundancy
  • DIP switch for 120 Ω terminal resistance
  • DIP switch for fiber test mode
  • LEDs for Fiber TX, Fiber RX, Power 1, Power 2
  • Wide temperature model available for -40 to 85°C environments
  • Fully compatible with the ISO 11898 standard

Description

Includes

  • 1 x ICF-1170I Series unit
  • 1 x installation guide
  • 1 x warranty statement

Specs:

CANbus Interface
ISO 11898-2, Terminals (CAN_H, CAN_L,CAN_
GND)

Protocols
CAN 2.0A and 2.0B (ISO 11898-2)

Connector Type
3-pin removable screw terminal x1

Termination Resistor
Dip switch selector for 120 Ω terminal resistor

Baudrate
Up to 1 Mbps

Fiber Connector Type
ST (multi-mode) fiber ports x 2

Support Cable
50/125, 62.5/125, or 100/140 μm (multi-mode)

Wavelength
850 nm

Tx Output
Multi-mode (> -5 dBm)

RX Sensitivity
Multi-mode (-20 dBm)

Overview:

The ICF-1170I converts CAN signals from copper to optical fiber. The converters come with 2 KV optical isolation for the CANbus system and dual power inputs with alarm contact relay to ensure that your CANbus system will remain online.

Fiber Test Mode can be used to test the fiber cable between two ICF-1170I units, and provides a simple way to determine if the fiber cable is transmitting data correctly. When in Fiber Test Mode, the fiber transceiver (TX) will continuously send out a data signal and the “Fiber TX” LED will light up. On the other side of the connection, when the ICF-1170I fiber transceiver (RX) receives the data signal form the TX side, the “Fiber RX” LED will light up.
