ILC-M3-Ex

Description

The ILC-M3-Ex unit are programmable, through friendly selectable Arabic, English or French GUI (Graphical User Interface) of iProg Software through your PC or Android (PC, Tablet or Smart Phone) to program each channel (electrical phase or branch or string) according to Real Time schedule to suite different applications. Also through iProg friendly GUI your sunset sunrise time are calculated upon selecting your location from City List or entering your Long / Lat coordinates. Up to 96 Events per day can be programmed for each Electrical Phase or Branch or String.

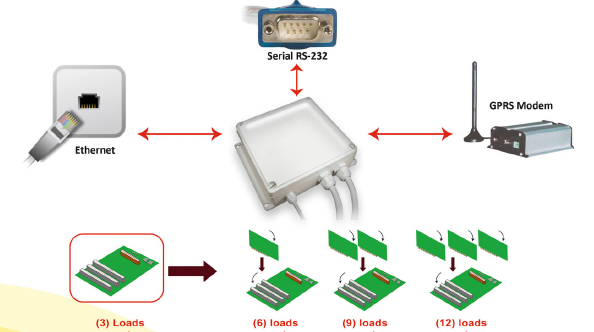

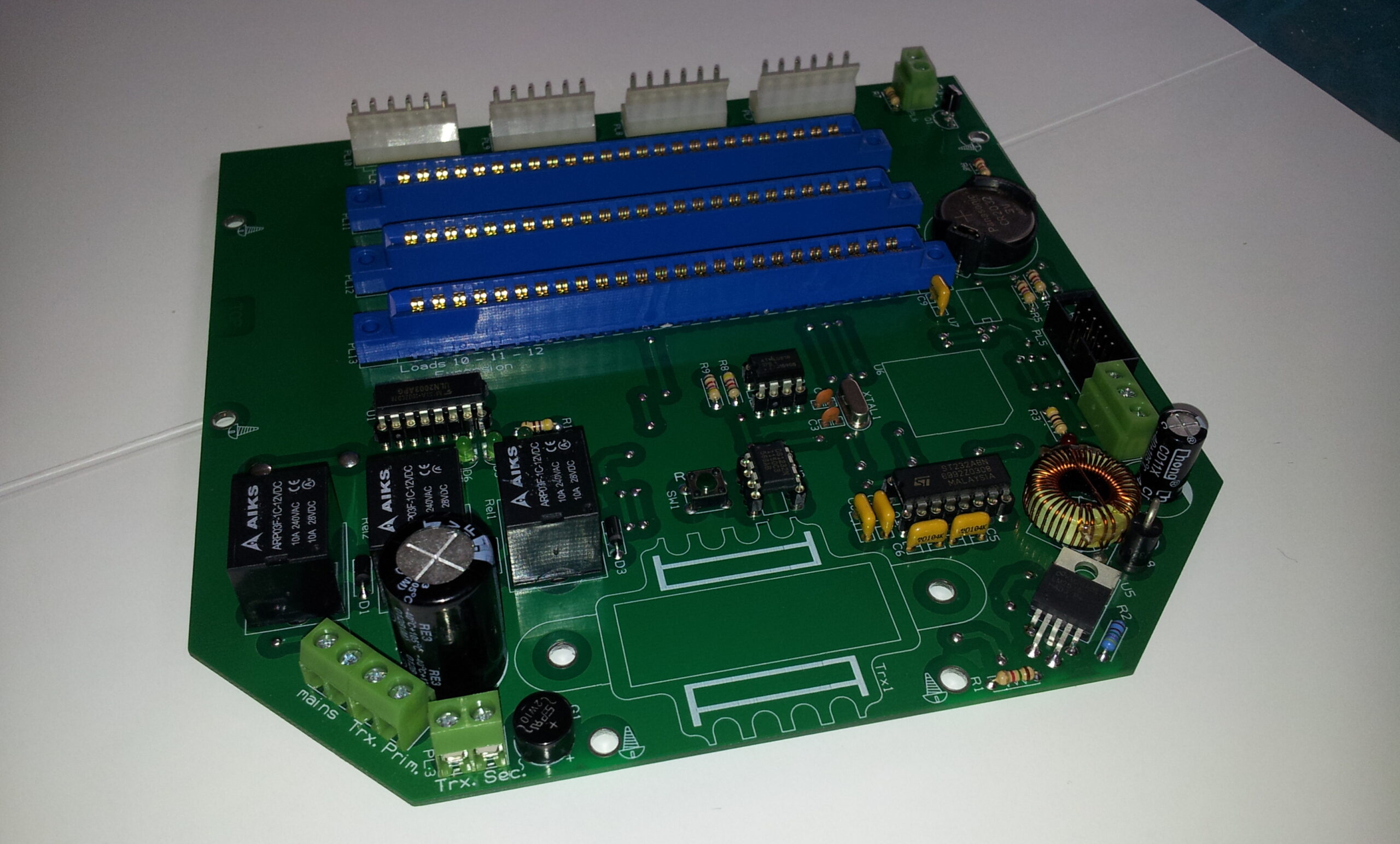

The heart of ILC units is Industrial Grade Controller and it enjoys an accurate Real Time Clock of not more than 63 Seconds drift per year. It also enjoys local programming through its serial RS-232 interface or remote programming through LAN interface (option) or cellular network interface (option).

Typical usage includes (but not limited to) connect  / disconnect electrical loads at certain time or upon certain temperature, level, existence or motion sensor triggering, in the following fields

  Lighting Roads, Streets and Parking Lots

–          Lighting Perimeter fence of Universities, Prisons, Camps, Hospitals, and Airports….etc.

–          Lighting Gardens in Resorts, Parks, Sporting clubs, and Olympic villages ….etc

–          Connect / Disconnect Water pumps in Water Towers, Buildings, Hotels, and Hospitals…..etc.

–          Connect / Disconnect Air conditioning units in Class Rooms, work place…..etc.

–          Connect / Disconnect Refregerators in Super & Hyper Markets or Shopping malls….etc.

 Typical applications include (but not limited to)

–          Per Channel: Load connect / disconnect on Sunset / Sunrise.

–          Per Channel: Load connect / disconnect on Real Time Clock Time Table (Year – Month – Day – Hour – 15 Minute).

–          Per Channel: Load connect / disconnect on temperature, level, existence or motion sensing.

ILC unit will benefit Buildings & Factory Owners, communities and municipalities in reducing their electricity bills and it cope with global trend toward reducing carbon emissions, or as we say towards Greener Environment.
