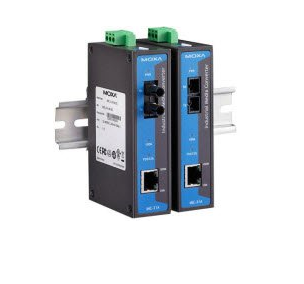

IMC-21A-M-SC-T Industrial 10/100BaseT(X) to 100BaseFX media converter

Industrial 10/100BaseT(X) to 100BaseFX media converter, multi mode, SC fiber connector, -40 to 75°C operating temperature

Highlights

Multi-mode or single-mode, with SC or ST fiber connector
Link Fault Pass-Through (LFP)
-40 to 75°C operating temperature range (T models)
DIP switches to select FDX/HDX/10/100/Auto/Force

Description

Includes

1 x IMC-21A media converter
Quick installation guide (printed)
Warranty card

Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for Flow Control

Interface
RJ45 Ports: 10/100BaseT(X)
Fiber Ports: 100BaseFX (SC/ST connectors)
LED Indicators: Power, 10/100M (TP port), 100M (fiber port), FDX/COL (fiber port)
DIP Switches: TP port’s 10/100M, Half/Full modes, Force/Auto modes; fiber port’s Half/Full modes, Link Fault Pass-Through (LFP)

Housing
Metal, IP30 protection

Installation
DIN-Rail mounting

Operating Temperature
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Input Voltage
12 to 48 VDC

Overview

The IMC-21A industrial media converters are entry-level 10/100BaseT(X) to 100BaseFX media converters designed to provide reliable and stable operation in harsh industrial environments. The converters can operate reliably in temperatures ranging from -40 to 75°C. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The IMC-21A converters are easy to mount on a DIN-Rail or in distribution boxes.
