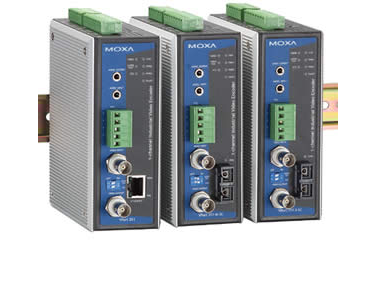

VPort 351-T 1-ch MPEG4/MJPEG Industrial Video Encoder

The VPort 351-T is a high performance, 1-channel industrial video encoder that provides up to full D1 , full frame rate performance (NTSC: 720 x 480 @ 30 FPS; PAL: 720 x 576 @ 25 FPS) and supports a dual MJPEG4/MJPEG algorithm, making it especially well suited for use with distributed surveillance systems in critical industrial applications. In addition, a continuous pre/post event trigger video record function can help system administrators determine why an alarm was triggered. The 2-way audio is provided for the convenience of real-time communication between system administrators located at the central site, and engineers in the field.

Description

Rugged design for Industrial mission-critical environments
The VPort 351 features DIN-Rail Mounting, a 12/24 VDC and 24 VAC redundant power input, -40 to 75°C operating temperature (T model), and IP30 protection for industrial mission-critical applications. In addition, the VPort 351 has received important industrial and safety approvals, such as UL508, Class1, Div. 2, making the VPort 351 well suited for transportation, utility, and manufacturing systems.

Pre/post alarm recorded video for better event records
The VPort 351 is designed to record pre/post alarm video to help system administrators determine what causes an alarm to be triggered. The record includes both video and time stamp to provide a more complete record.

2-way audio enables the real-time communication between central and field sites
In addition to being able to monitor video from remote sites, it is also important to be able to handle field site situations. For this reason, 2-way audio is provided for the convenience of real-time communication between system administrators located at the central site, and engineers in the field. The 2-way audio function not only saves time, but also saves the cost of needing to add additional communication devices (such as a phone).

High Performance Video/Audio Networking Solution
Can works with NTSC/PAL analog video cameras
MPEG4/MJPEG video compression technology (MJPEG will be supported after V2.0 firmware)
1 BNC video input and 1 BNC video output with 75Ω resistance
1 audio input and 1 audio output for 2-way voice communication
Standard RTSP (real-time streaming protocol) for easy integration supported
Multicast (IGMP) protocols for efficient network transmission supported
Built-in web server and RS-232 console for remote access and configuration
1 auto-sensing 10/100BaseT(X) Ethernet port or 100BaseFX (SC connector)
TCP, UDP, and HTTP network transmission modes
Simultaneous access for up to 10 clients
Configure video quality for CBR (constant bit rate) or VBR (variable bit rate)
Full D1, 4CIF, VGA, CIF, and QVGA video resolutions supported (4CIF will be supported after V2.0 firmware)
Timestamp and text overlay supported
Support RS-232/RS-422/RS-485 COM port for controlling PTZ (PAN/TILT/ZOOM) motorized camera
UPnP and IP filtering supported
PPPoE and DDNS supported (after V2.0 Firmware)

Industrial Rugged Design
2 12/24 VDC and 24 VAC redundant power inputs with LED indicators
-40 to 75°C operating temperature for critical industrial environment (-T models)
35 mm DIN-Rail mounting, or panel mounting (with optional kit)
IP30 form factor protection
Class 1, Div. 2 hazardous certification for critical environments (Pending)

Intelligent Alarm Triggered Capability
Built-in Video Motion Detection (VMD)
Equipped with 2 DIs and 2 Relays (DO) for external sensors and alarms
Pre/post-alarm video recording function for advanced surveillance
Pre, trigger, and post alarm snapshot images provided
Sequential snapshot images supported
Messages with recorded video and snapshot images can be sent via FTP and Email
Alarm schedule setting capability

Video Management and Control
MOXA SoftDVR™ Lite IP Surveillance Software for viewing and recording bundled free
Free MOXA VPort SDK PLUS supported with flexible interface and sample codes for customized application or system integration
