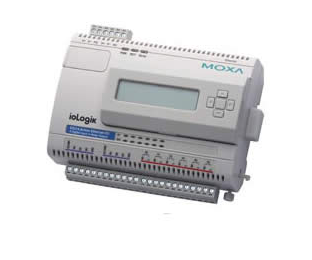

ioLogik E2214 Active Ethernet I/O with 6 digital inputs and 6

ioLogik E2214 Active Ethernet I/O with 6 digital inputs and 6 relay outputs

Highlights

6 DIs supporting PNP, NPN, and dry contact
6 Form A relay outputs (Normal Open)
Relay specifications: 5 A @ 250 VAC, 5 A @ 30 VDC
Instant event messaging by TCP/UDP/email/SNMP-trap
DI and Relay counter saved when the power is shut off
PC-based configuration utility and web console
Power On default relay status setting with sequence
Easy-to-use Click&Go Logic for local output control
Windows/WinCE VB/VC.NET and Linux C APIs
I/O control over Modbus/TCP and SNMP protocol

Description

Includes

1 x ioLogik E2200 Series unit
1 x support CD/DVD

Specs:

Ethernet
1 x 10/100 Mbps, RJ45

Protection
1.5 KV magnetic isolation

Protocols
Modbus/TCP, TCP/IP, UDP, DHCP, Bootp, SNMP (MIB for I/O and Network), HTTP, CGI, SNTP

Interface
RS-485-2w Data+, Data-, GND

Serial Line Protection
15 KV ESD for all signals

Channels
6, source/sink selectable

Sensor Type
NPN, PNP, and Dry contact

Dry Contact
Logic 0 short to GND
Logic 1 open

Wet Contact
(For Source Type)
Logic 0 0 to 3 VDC
Logic 1 10 to 30 VDC (DI COM to DI)

Channels
6 Form A (N.O.) relay outputs, 5A

Relay On/Off Time
10 ms, 5 ms (Max.)

Initial Insulation Resistance
1G min. @ 500 VDC

Expected Life
100,000 times (Typical)

Initial Contact Resistance
30 milli-ohms (Max.)

Pulse Output
0.3 Hz at rated load

Overview:

Remote Ethernet Relay Control he ioLogik E2214 is a stand-alone Active Ethernet I/O product with 6 digital inputs and 6 relay outputs. The DIN-Rail mountable E2214 can be connected to digital switches, alarm lights, buzzers, and warning sirens over Ethernet and IP-based networks.

The ioLogik E2214 also records the built-in relay output usage counter. Even when a sudden power failure is encountered, the ioLogik E2214 will still be able to record the relay output usage counter in its internal memory before the power shuts down completely.
