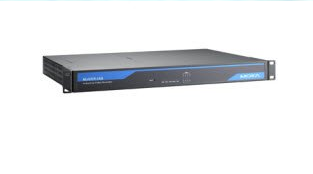

MxNVR-IA8-T 8-channel industrial network video recorder, 1 10/10

8-channel industrial network video recorder, 1 10/100/1000BaseT(X) Ethernet, operating temperature -40 to 75°C (-40 to 167°F)

Description

Highlights

  • Supports H.264, MPEG4, and MJPEG video recording
  • Can record up to 8 VPort video stream channels
  • Supports video recording by schedule and event record
  • Built-in 2×2.5” SATA hard disk interface for storage hard disks
  • -40 to 75°C operating temperature (with solid state disk)
  • Modbus/TCP supported for direct communication with SCADA systems
  • Supports IEEE 802.1X for high network security
  • Robust, fanless, 19” rackmount

Includes

  • 1 x MxNVR-IA8 network video recorder
  • 2 x Rackmount ears with screws
  • 1 x 3-pin terminal block for power input
  • 2 x 5-pin terminal blocks for 6 DIs and 2 DOs
  • 4 x Pads
  • Quick installation guide (printed)
  • Documentation and software CD
  • Warranty Card

No. of Streams

8 VPort video/audio streams

Stream Types
H.264, MPEG4, MJPEG

Video Input
via Ethernet

Video File Format
AVI

Record Modes
Manual, schedule, alarm

Pre-alarm Recording
Up to 30 sec.

Post-alarm Recording
Up to 60 sec.

Search Modes
Camera, date/time, event

Method
Remote access, FTP file download

Remote Access
Playback via web browser or client software

Disk Interface
2 2.5” SATAII sockets

Note: Storage disks are not included. Users will need to purchase 2.5” hard disks or SSDs (solid state disks) from a hard disk vendor.

Protocols
TCP/IP, UDP, HTTP, SMTP, NTP, DNS, DHCP, UPnP, RTP, RTSP, ICMP, IGMPv3, SNMPv1/v2c/v3, DDNS, FTP, Modbu/TCP, 802.1X

Input Voltage
1 24 VDC power input with 3-pin terminal block connector

Operating Temperature
Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Overview

The MxNVR-IA8 is a revolutionary new 8-channel industrial network video recorder designed for recording the VPort’s MJPEG, MPEG4, and H.264 video streams in harsh environments. With rugged design features, such as no heater or fan, a -40 to 75°C operating temperature, and protection against high EMI and surges, as well as the ability to save bandwidth when transmitting video streams back to the remote control center or machine room for video recording, the MxNVR-IA8 is tailor-made for field site applications. Since videos are only transmitted when remote live view and video playback are required, you will see an improvement in network transmission efficiency and a noticeable reduction in your bandwidth investments.
