Description
Includes
- 1 x EDS-305-M12 Series unit
- 1 x installation guide
- 1 x warranty statement
- 3 x protective caps for unused ports
- 8 x port labels
- 1 x panel mounting kit
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for Flow Control
Processing Type
Store and Forward
Flow Control
IEEE 802.3x full duplex, back pressure flow control
Interface
M12 Ports 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
LED Indicators
Power, LNK/ACT
• Physical Characteristics:
Housing Plastic, IP67 protection
Weight 250 g
Dimensions 60 x 125 x 29.6 mm (2.36 x 4.92 x 1.17 in)
Installation Field-style mounting, DIN-Rail mounting (with optional kit)

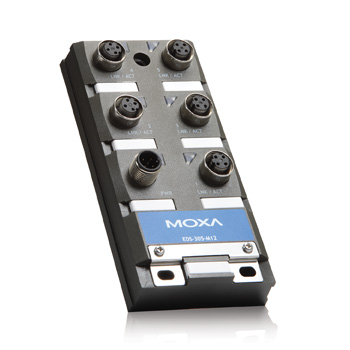

OVERVIEW
The EDS-305-M12 series Ethernet switches are IP67 rated for the toughest industrial applications, which means that the rugged housing and connectors guard against dust, water, and oil. By using M12 connectors, you can rest assured that thernet cables will connect tightly to the switch, and will be robust enough to protect your applications from external disturbances, such as the vibration and shock encountered in the transportation industry.
The space-saving EDS-305-M12 switches can be mounted virtually anywhere, and wide operating temperature (-40 to 75°C) models are also available for use in the extremest of conditions.
