CP-102UL-T 2-port RS-232 low profile Universal PCI serial board, -40 to 85°C operating temperature

Highlights

  • Over 800 Kbps data throughput for top performance
  • 921.6 Kbps maximum baudrate for super fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Compatible with 3.3/5V PCI and PCI-X
  • Drivers provided for Windows (2000, XP/2003/Vista/2008 x86/x64, 9X/ME/NT), Windows CE 5.0/6.0, Windows XP Embedded, DOS, Linux 2.4, Linux 2.6 (x86/x64), FreeBSD 4/5, QNX 6, SCO Open Server 5/6, UnixWare 7
  • 15 KV ESD protection on the board
  • The CP-102UL’s MD1 low profile form factor fits small-sized PCs
  • Wide temperature model available for -40 to 85°C environments

Description

Includes

  • 1 x CP-102U/UL unit
  • 1 x support CD/DVD
  • 1 x installation guide
  • 1 x warranty statement

Specs:

Comm. Controller
MU860 (16C550C compatible)

Bus
32-bit Universal PCI

Connector
CP-102U DB9 male x 2
CP-102UL DB25 female

Number of Ports
2 (only one IRQ required)

Serial Standards
RS-232

ESD Protection
15 KV on the board

Operating Systems
Windows (2000, XP/2003/Vista/2008 x86/x64, 9X/ME/NT), Windows CE 5.0/6.0, Windows XP Embedded, DOS, Linux 2.4, Linux 2.6 (x86/x64), FreeBSD 4/5, QNX 6, SCO Open Server 5/6, UnixWare 7

Dimensions
CP-102U 120 x 120 mm (3.15 x 4.72 in)CP-102UL 64.5 x 120 mm (2.53 x 4.72 in)

Operating Temperature
Standard Models 0 to 55°C (32 to 131°F)
Wide Temp. Models -40 to 85°C (-40 to 185°F)

Overview:

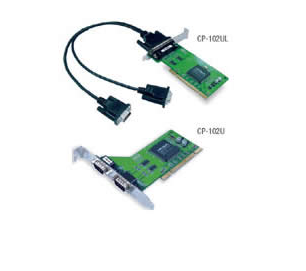

The CP-102U and CP-102UL are 2-port Universal PCI boards designed for POS and ATM applications. They are a top choice of industrial automation engineers and system integrators, and support many different operating systems, including Windows, Linux, and even Unix. In addition, each of the boards’ RS-232 serial ports supports a super fast 921.6 Kbps baudrate.

The CP-102U and CP-102UL provide full modem control signals to ensure compatibility with a wide range of serial peripherals, and they work with both 3.3V and 5V PCI buses, allowing the boards to be installed in virtually any available PC server.
