EDS-205, 5-port entry-level unmanaged Ethernet switches

Entry-level unmanaged Ethernet switch with 5 10/100BaseT(X) ports, plastic housing, -10 to 60C operating temperature

Highlights

10/100BaseT(X) (RJ45 connector), 100BaseFX (multi-mode, SC/ST connectors)
IEEE802.3/802.3u/802.3x support
Broadcast storm protection
DIN-Rail mounting ability
-10 to 60C operating temperature range

Description

Includes

1 x EDS-205/208 Series unit
1 x installation guide
1 x warranty statement

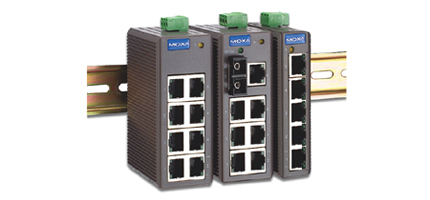

The EDS-205/208 series of industrial Ethernet switches are entry level industrial 5 and 8-port Ethernet switches that support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX autosensing RJ45 ports.

The EDS-205/208 switches are rated to operate at temperatures ranging from -10 to 60C, and are rugged enough for any harsh industrial environment.

The switches can be easily installed on a DIN-Rail as well as in distribution boxes. The DIN-Rail mounting capability, wide operating temperature, and the the IP30 housing with LED indicators make the plug-and-play EDS-205/208 switches easy to use and reliable.
