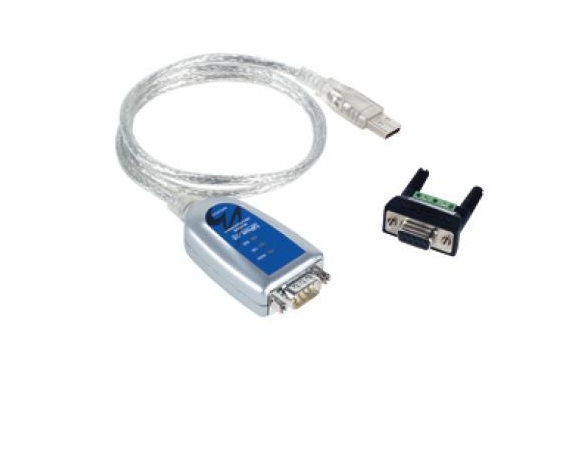

UPort 1130I USB to RS-422/485 adaptor with 2 KV isolation

UPort 1130I USB to RS-422/485 adaptor with 2 KV isolation

Highlights

  • Optionally available with 2 KV optical isolation
  • Includes terminal block adaptor for easy wiring
  • Full drivers for Windows, WinCE, and Linux
  • 921.6 Kbps maximum baudrate for super fast data transmission
  • LEDs for indicating USB and TxD/RxD activity
  • 15 KV ESD protection for all serial ports
  • Compatible with USB 2.0
  • 12 Mbps USB data rate
Categories: , ,

Description

Includes

  • 1 x UPort 1100 Series unit
  • 1 x support CD/DVD
  • 1 x installation guide
  • 1 x warranty statement
  • 1 x mini DB9 female to terminal block adaptor (UPort 1130, 1130I, and 1150 only)

Specs:

Compliance
USB 1.0/1.1 compliant, USB 2.0 compatible

Connector
USB type A

Speed
12 Mbps (Full-Speed USB)

Number of Ports
1

Serial Standards
UPort 1110 RS-232
UPort 1130 RS-422/485
UPort 1150 RS-232/422/485

Connector
DB9 male

Operating Systems
Windows (98/ME/2000, XP/2003/Vista x86/x64), WinCE 5.0/6.0, Linux 2.4, Linux 2.6 x86/x64

Operating Temperature
0 to 55°C (32 to 131°F)

Power Consumption
UPort 1130 90 mA @ 5 VDC

Overview:

The UPort 1130 is the perfect accessory for laptop computers that need an RS-422 or RS-485 connection. It is don’t have a serial port. Plug it into a USB port and connect to an RS-422 or RS-485 network or device. It is compatible with new and legacy serial devices, and can be used with mobile, instrumentation, and point-of-sale applications. Windows and Linux drivers are provided, and 2 KV optical isolation is available as an option.
